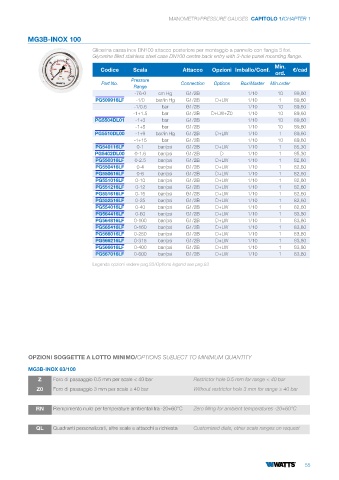

Page 57 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

MG3B-INOX 100
Glicerina cassa inox DN100 attacco posteriore per montaggio a pannello con flangia 3 fori.
Glycerine filled stainless steel case DN100 centre back entry with 3-hole panel mounting flange.
Min.
Codice Scala Attacco Opzioni Imballo/Conf. €/cad
ord.
Pressure
Part No. Connection Options Box/Master Min.order
Range
-76-0 cm Hg G1/2B 1/10 10 89,60
PG509916LF -1/0 bar/in Hg G1/2B D+LW 1/10 1 89,60
-1/0.6 bar G1/2B 1/10 10 89,60
-1+1.5 bar G1/2B D+LW+Z0 1/10 10 89,60
PG5504DL01 -1+3 bar G1/2B 1/10 10 89,60
-1+5 bar G1/2B 1/10 10 89,60
PG5510DL00 -1+9 bar/in Hg G1/2B D+LW 1/10 1 89,60
-1+15 bar G1/2B 1/10 10 89,60
PG540116LF 0-1 bar/psi G1/2B D+LW 1/10 1 85,30
PG5402DL00 0-1.6 bar/psi G1/2B D 1/10 1 85,30
PG550316LF 0-2.5 bar/psi G1/2B D+LW 1/10 1 82,60
PG550416LF 0-4 bar/psi G1/2B D+LW 1/10 1 82,60
PG550616LF 0-6 bar/psi G1/2B D+LW 1/10 1 82,60
PG551016LF 0-10 bar/psi G1/2B D+LW 1/10 1 82,60
PG551216LF 0-12 bar/psi G1/2B D+LW 1/10 1 82,60
PG551616LF 0-16 bar/psi G1/2B D+LW 1/10 1 82,60
PG552516LF 0-25 bar/psi G1/2B D+LW 1/10 1 82,60
PG554016LF 0-40 bar/psi G1/2B D+LW 1/10 1 82,60
PG564416LF 0-60 bar/psi G1/2B D+LW 1/10 1 83,80
PG564816LF 0-100 bar/psi G1/2B D+LW 1/10 1 83,80
PG565416LF 0-160 bar/psi G1/2B D+LW 1/10 1 83,80
PG566016LF 0-250 bar/psi G1/2B D+LW 1/10 1 83,80
PG566216LF 0-315 bar/psi G1/2B D+LW 1/10 1 83,80
PG566616LF 0-400 bar/psi G1/2B D+LW 1/10 1 83,80
PG567016LF 0-600 bar/psi G1/2B D+LW 1/10 1 83,80
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY
MG3B-INOX 63/100
Z Foro di passaggio 0.5 mm per scale < 40 bar Restrictor hole 0.5 mm for range < 40 bar
Z0 Foro di passaggio 3 mm per scale ≥ 40 bar Without restrictor hole 3 mm for range ≥ 40 bar

RN Riempimento nullo per temperature ambientali tra -20+60°C Zero filling for ambient temperatures -20+60°C

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request

55
