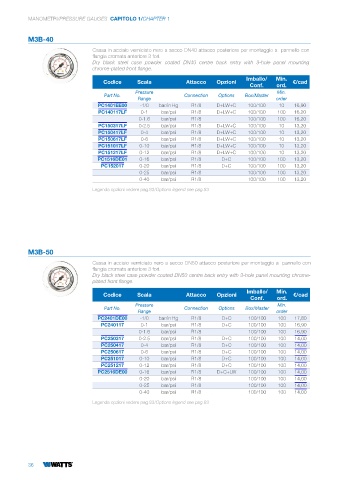

P. 38

MANOMETRI/PRESSURE GAUGES  CAPITOLO 1/CHAPTER 1



           M3B-40
                                  Cassa in acciaio verniciato nero a secco DN40 attacco posteriore per montaggio a  pannello con
                                  flangia cromata anteriore 3 fori.
                                  Dry black steel case powder coated DN40 centre back entry with 3-hole panel mounting
                                  chrome-plated front flange.
                                                                                        Imballo/  Min.
                                     Codice      Scala            Attacco    Opzioni                    €/cad
                                                                                         Conf.    ord.
                                                 Pressure                                         Min.
                                      Part No.                    Connection  Options  Box/Master
                                                 Range                                            order
                                   PC1401EE00     -1/0   bar/in Hg  R1/8     D+LW+C     100/100    10   16,90
                                   PC140117LF     0-1     bar/psi   R1/8     D+LW+C     100/100   100   16,20
                                                  0-1.6   bar/psi   R1/8                100/100   100   16,20
                                   PC150317LF     0-2.5   bar/psi   R1/8     D+LW+C     100/100    10   13,20
                                   PC150417LF     0-4     bar/psi   R1/8     D+LW+C     100/100    10   13,20
                                   PC150617LF     0-6     bar/psi   R1/8     D+LW+C     100/100    10   13,20
                                   PC151017LF     0-10    bar/psi   R1/8     D+LW+C     100/100    10   13,20
                                   PC151217LF     0-12    bar/psi   R1/8     D+LW+C     100/100    10   13,20
                                   PC1516DE01     0-16    bar/psi   R1/8       D+C      100/100   100   13,20
                                    PC152017      0-20    bar/psi   R1/8       D+C      100/100   100   13,20
                                                  0-25    bar/psi   R1/8                100/100   100   13,20
                                                  0-40    bar/psi   R1/8                100/100   100   13,20
                                  Legenda opzioni vedere pag.83/Options legend see pag.83











           M3B-50

                                  Cassa in acciaio verniciato nero a secco DN50 attacco posteriore per montaggio a  pannello con
                                  flangia cromata anteriore 3 fori.
                                  Dry black steel case powder coated DN50 centre back entry with 3-hole panel mounting chrome-
                                  plated front flange.
                                                                                        Imballo/  Min.
                                     Codice      Scala            Attacco    Opzioni                    €/cad
                                                                                         Conf.    ord.
                                                 Pressure                                         Min.
                                      Part No.                    Connection  Options  Box/Master
                                                 Range                                            order
                                   PC2401DE00     -1/0   bar/in Hg  R1/8       D+C      100/100    100  17,80
                                    PC240117      0-1     bar/psi   R1/8       D+C      100/100    100  16,90
                                                  0-1.6   bar/psi   R1/8                100/100    100  16,90
                                    PC250317      0-2.5   bar/psi   R1/8       D+C      100/100    100  14,00
                                    PC250417      0-4     bar/psi   R1/8       D+C      100/100    100  14,00
                                    PC250617      0-6     bar/psi   R1/8       D+C      100/100    100  14,00
                                    PC251017      0-10    bar/psi   R1/8       D+C      100/100    100  14,00
                                    PC251217      0-12    bar/psi   R1/8       D+C      100/100    100  14,00
                                   PC2516DE00     0-16    bar/psi   R1/8     D+C+LW     100/100    100  14,00
                                                  0-20    bar/psi   R1/8                100/100    100  14,00
                                                  0-25    bar/psi   R1/8                100/100    100  14,00
                                                  0-40    bar/psi   R1/8                100/100    100  14,00

                                  Legenda opzioni vedere pag.83/Options legend see pag.83
