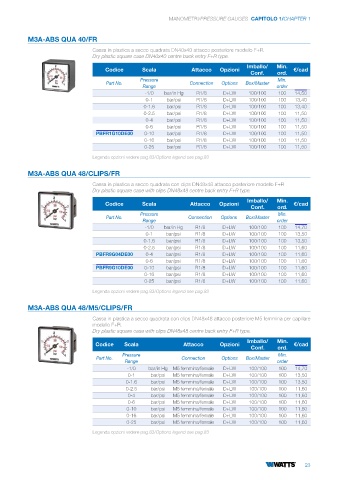

Page 25 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-ABS QUA 40/FR
Cassa in plastica a secco quadrata DN40x40 attacco posteriore modello F+R.
Dry plastic square case DN40x40 centre back entry F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW 100/100 100 14,50
0-1 bar/psi R1/8 D+LW 100/100 100 13,40
0-1.6 bar/psi R1/8 D+LW 100/100 100 13,40
0-2.5 bar/psi R1/8 D+LW 100/100 100 11,50
0-4 bar/psi R1/8 D+LW 100/100 100 11,50
0-6 bar/psi R1/8 D+LW 100/100 100 11,50
PBFR1G10DE00 0-10 bar/psi R1/8 D+LW 100/100 100 11,50
0-16 bar/psi R1/8 D+LW 100/100 100 11,50
0-25 bar/psi R1/8 D+LW 100/100 100 11,50
Legenda opzioni vedere pag.83/Options legend see pag.83

M3A-ABS QUA 48/CLIPS/FR

Cassa in plastica a secco quadrata con clips DN48x48 attacco posteriore modello F+R
Dry plastic square case with clips DN48x48 centre back entry F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW 100/100 100 14,70
0-1 bar/psi R1/8 D+LW 100/100 100 13,50
0-1.6 bar/psi R1/8 D+LW 100/100 100 13,50
0-2.5 bar/psi R1/8 D+LW 100/100 100 11,60
PBFR9G04DE00 0-4 bar/psi R1/8 D+LW 100/100 100 11,60
0-6 bar/psi R1/8 D+LW 100/100 100 11,60
PBFR9G10DE00 0-10 bar/psi R1/8 D+LW 100/100 100 11,60
0-16 bar/psi R1/8 D+LW 100/100 100 11,60
0-25 bar/psi R1/8 D+LW 100/100 100 11,60
Legenda opzioni vedere pag.83/Options legend see pag.83

M3A-ABS QUA 48/M5/CLIPS/FR

Cassa in plastica a secco quadrata con clips DN48x48 attacco posteriore M5 femmina per capillare
modello F+R.
Dry plastic square case with clips DN48x48 centre back entry F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg M5 femmina/female D+LW 100/100 100 14,70
0-1 bar/psi M5 femmina/female D+LW 100/100 100 13,50
0-1.6 bar/psi M5 femmina/female D+LW 100/100 100 13,50
0-2.5 bar/psi M5 femmina/female D+LW 100/100 100 11,60
0-4 bar/psi M5 femmina/female D+LW 100/100 100 11,60
0-6 bar/psi M5 femmina/female D+LW 100/100 100 11,60
0-10 bar/psi M5 femmina/female D+LW 100/100 100 11,60
0-16 bar/psi M5 femmina/female D+LW 100/100 100 11,60
0-25 bar/psi M5 femmina/female D+LW 100/100 100 11,60
Legenda opzioni vedere pag.83/Options legend see pag.83

23
