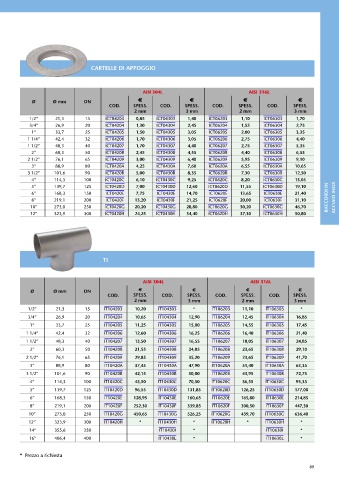

Page 89 - ATUSA - LISTINO 2023

CARTELLE DI APPOGGIO

AISI 304L AISI 316L
Ø Ø mm DN € € € €
COD. SPESS. COD. SPESS. COD. SPESS. COD. SPESS.
2 mm 3 mm 2 mm 3 mm
1/2” 21,3 15 ICT04203 0,85 ICT04303 1,40 ICT06203 1,10 ICT06303 1,70
3/4” 26,9 20 ICT04204 1,30 ICT04304 2,45 ICT06204 1,55 ICT06304 2,75
1” 33,7 25 ICT04205 1,50 ICT04305 3,05 ICT06205 2,00 ICT06305 3,35
1 1/4” 42,4 32 ICT04206 1,70 ICT04306 3,05 ICT06206 2,75 ICT06306 4,40
1 1/2” 48,3 40 ICT04207 1,70 ICT04307 4,40 ICT06207 2,75 ICT06307 5,35
2” 60,3 50 ICT04208 2,45 ICT04308 4,55 ICT06208 4,40 ICT06308 6,55
2 1/2” 76,1 65 ICT04209 3,00 ICT04309 6,40 ICT06209 5,95 ICT06309 9,10
3” 88,9 80 ICT0420A 4,25 ICT0430A 7,60 ICT0620A 6,55 ICT0630A 10,65
3 1/2” 101,6 90 ICT0420B 5,00 ICT0430B 8,35 ICT0620B 7,30 ICT0630B 12,50
4” 114,3 100 ICT0420C 6,10 ICT0430C 9,25 ICT0620C 8,20 ICT0630C 13,05
5” 139,7 125 ICT0420D 7,00 ICT0430D 12,60 ICT0620D 11,55 ICT0630D 19,10
6” 168,3 150 ICT0420E 7,75 ICT0430E 14,70 ICT0620E 13,65 ICT0630E 21,40
8” 219,1 200 ICT0420F 13,20 ICT0430F 21,25 ICT0620F 20,00 ICT0630F 31,10 RACCORDI IN ACCIAIO INOX
10” 273,0 250 ICT0420G 20,20 ICT0430G 28,80 ICT0620G 30,20 ICT0630G 46,70
12” 323,9 300 ICT0420H 24,25 ICT0430H 34,40 ICT0620H 37,30 ICT0630H 50,80

TI

AISI 304L AISI 316L
Ø Ø mm DN € € € €
COD. SPESS. COD. SPESS. COD. SPESS. COD. SPESS.
2 mm 3 mm 2 mm 3 mm
1/2” 21,3 15 IT104203 10,20 IT104303 * IT106203 11,10 IT106303 *
3/4” 26,9 20 IT104204 10,65 IT104304 12,90 IT106204 12,45 IT106304 16,85
1” 33,7 25 IT104205 11,25 IT104305 15,00 IT106205 14,55 IT106305 17,45
1 1/4” 42,4 32 IT104206 12,60 IT104306 16,25 IT106206 16,40 IT106306 21,40
1 1/2” 48,3 40 IT104207 13,50 IT104307 16,55 IT106207 18,05 IT106307 24,85
2” 60,3 50 IT104208 21,55 IT104308 24,85 IT106208 23,65 IT106308 29,10
2 1/2” 76,1 65 IT104209 29,85 IT104309 35,20 IT106209 23,65 IT106309 41,70
3” 88,9 80 IT10420A 37,45 IT10430A 47,90 IT10620A 51,40 IT10630A 63,35
3 1/2” 101,6 90 IT10420B 42,15 IT10430B 50,00 IT10620B 43,95 IT10630B 72,75
4” 114,3 100 IT10420C 45,50 IT10430C 70,50 IT10620C 56,55 IT10630C 93,35
5” 139,7 125 IT10420D 96,55 IT10430D 131,85 IT10620D 126,25 IT10630D 177,00
6” 168,3 150 IT10420E 128,95 IT10430E 160,65 IT10620E 165,80 IT10630E 214,85
8” 219,1 200 IT10420F 252,30 IT10430F 339,85 IT10620F 300,50 IT10630F 447,30
10” 273,0 250 IT10420G 450,65 IT10430G 526,25 IT10620G 439,70 IT10630G 636,40
12” 323,9 300 IT10420H * IT10430H * IT10620H * IT10630H *
14” 355,6 350 IT10430I * IT10630I *
16” 406,4 400 IT10430L * IT10630L *

* Prezzo a richiesta

89
