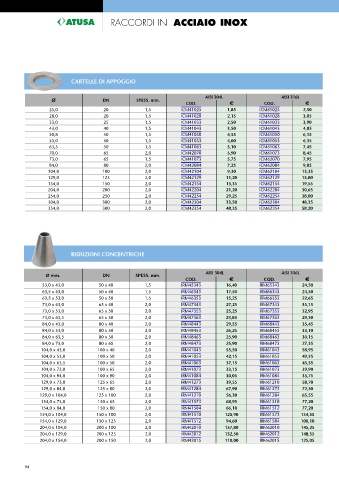

Page 94 - ATUSA - LISTINO 2023

RACCORDI IN ACCIAIO INOX

CARTELLE DI APPOGGIO

AISI 304L AISI 316L
Ø DN SPESS. mm.
COD. E COD. E
25,0 20 1,5 ICM41025 1,85 ICM61025 2,50
28,0 20 1,5 ICM41028 2,15 ICM61028 3,05
33,0 25 1,5 ICM41033 2,50 ICM61033 3,90
43,0 40 1,5 ICM41043 3,50 ICM61043 4,85
50,8 50 1,5 ICM41050 4,55 ICM61050 6,15
53,0 50 1,5 ICM41053 4,60 ICM61053 6,15
63,5 50 1,5 ICM41063 5,10 ICM61063 7,45
70,0 65 2,0 ICM42070 5,90 ICM61073 8,45
73,0 65 1,5 ICM41073 5,75 ICM62070 7,95
84,0 80 2,0 ICM42084 7,25 ICM62084 9,85
104,0 100 2,0 ICM42104 9,30 ICM62104 13,35
129,0 125 2,0 ICM42129 11,20 ICM62129 15,80
154,0 150 2,0 ICM42154 13,35 ICM62154 19,55
204,0 200 2,0 ICM42204 21,20 ICM62204 30,65
254,0 250 2,0 ICM42254 29,25 ICM62254 38,00
304,0 300 2,0 ICM42304 33,50 ICM62304 48,35
354,0 300 2,0 ICM42354 48,35 ICM62354 58,20

RIDUZIONI CONCENTRICHE

AISI 304L AISI 316L
Ø mm. DN SPESS. mm.
COD. € COD. €
53,0 x 43,0 50 x 40 1,5 IRM45343 16,40 IRM65343 24,50
63,5 x 43,0 50 x 40 1,5 IRM46343 17,50 IRM66343 24,50
63,5 x 53,0 50 x 50 1,5 IRM46353 15,25 IRM66353 22,65
73,0 x 43,0 65 x 40 2,0 IRM47343 27,25 IRM67343 35,15
73,0 x 53,0 65 x 50 2,0 IRM47353 25,25 IRM67353 32,95
73,0 x 63,5 65 x 50 2,0 IRM47363 23,85 IRM67363 29,30
84,0 x 43,0 80 x 40 2,0 IRM48443 29,55 IRM68443 35,45
84,0 x 53,0 80 x 50 2,0 IRM48453 26,25 IRM68453 33,10
84,0 x 63,5 80 x 50 2,0 IRM48463 25,90 IRM68463 30,15
84,0 x 73,0 80 x 65 2,0 IRM48473 25,90 IRM68473 27,35
104,0 x 43,0 100 x 40 2,0 IRM41043 53,50 IRM61043 58,95
104,0 x 53,0 100 x 50 2,0 IRM41053 42,15 IRM61053 49,35
104,0 x 63,5 100 x 50 2,0 IRM41063 37,15 IRM61063 43,55
104,0 x 73,0 100 x 65 2,0 IRM41073 33,15 IRM61073 39,90
104,0 x 84,0 100 x 80 2,0 IRM41084 30,05 IRM61084 33,75
129,0 x 73,0 125 x 65 2,0 IRM41273 39,55 IRM61210 58,70
129,0 x 84,0 125 x 80 2,0 IRM41284 67,90 IRM61273 72,50
129,0 x 104,0 125 x 100 2,0 IRM41210 56,30 IRM61284 65,55
154,0 x 73,0 150 x 65 2,0 IRM41573 68,95 IRM61510 77,20
154,0 x 84,0 150 x 80 2,0 IRM41584 66,10 IRM61512 77,20
154,0 x 104,0 150 x 100 2,0 IRM41510 125,90 IRM61573 134,55
154,0 x 129,0 150 x 125 2,0 IRM41512 94,60 IRM61584 100,10
204,0 x 104,0 200 x 100 2,0 IRM42010 157,80 IRM62010 145,25
204,0 x 129,0 200 x 125 2,0 IRM42012 132,50 IRM62012 148,35
204,0 x 154,0 200 x 150 2,0 IRM42015 110,00 IRM62015 125,05

94
