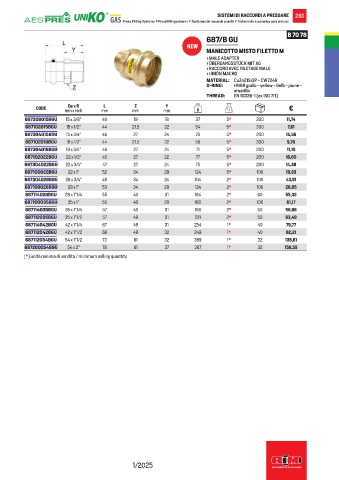

Page 283 - RACCORDERIEMETALLICHE - LISTINO 2025 - FIDRA

SISTEMI DI RACCORDI A PRESSARE 281
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 70 78
687/B GU
NEW
MANICOTTO MISTO FILETTO M
• MALE ADAPTER
• ÜBERGANGSSTÜCK MIT AG
• RACCORD AVEC FILETAGE MALE
• UNIÓN MACHO
MATERIAL: CuZn21Si3P - CW724R
O-RING: HNBR giallo - yellow - Gelb - jaune -
amarillo
THREAD: EN 10226-1 (ex ISO 7/1)

L
De x R
Z
Y
CODE mm x inch mm mm mm g €
687308015BGU 15 x 3/8” 40 19 18 37 5* 300 11,74
687102015BGU 15 x 1/2” 44 21,5 22 54 5* 300 7,61
687304015BGU 15 x 3/4” 46 27 24 70 5* 200 15,56
687102018BGU 18 x 1/2” 44 21,5 22 56 5* 300 9,70
687304018BGU 18 x 3/4” 46 27 24 71 5* 200 11,10
687102022BGU 22 x 1/2” 45 27 22 77 5* 200 16,00
687304022BGU 22 x 3/4” 47 27 24 75 5* 200 14,38
687100022BGU 22 x 1” 52 34 29 124 5* 100 19,33
687304028BGU 28 x 3/4” 48 34 24 104 2* 100 43,91
687100028BGU 28 x 1” 53 34 29 124 2* 100 26,85
687114028BGU 28 x 1”1/4 55 43 31 184 2* 60 55,32
687100035BGU 35 x 1” 55 40 29 160 2* 100 61,17
687114035BGU 35 x 1”1/4 57 43 31 186 2* 50 58,66
687112035BGU 35 x 1”1/2 57 49 31 231 2* 50 63,49
687114042BGU 42 x 1”1/4 67 49 31 254 1* 40 79,77
687112042BGU 42 x 1”1/2 68 49 32 249 1* 40 82,21
687112054BGU 54 x 1”1/2 73 61 32 369 1* 32 138,61
687200054BGU 54 x 2” 78 61 37 367 1* 32 158,55
(*) unità minima di vendita / minimum selling quantity

1/2025
