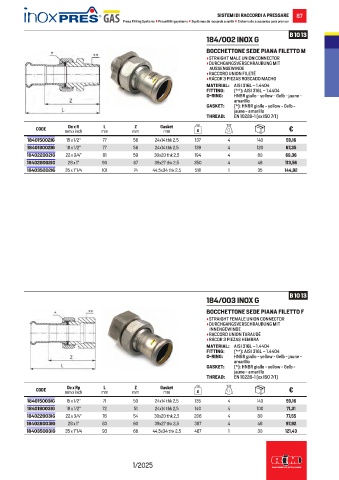

Page 89 - RACCORDERIEMETALLICHE - LISTINO 2025 - FIDRA

SISTEMI DI RACCORDI A PRESSARE 87
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 10 13
184/002 INOX G
BOCCHETTONE SEDE PIANA FILETTO M
• STRAIGHT MALE UNION CONNECTOR
• DURCHGANGSVERSCHRAUBUNG MIT
AUSSENGEWINDE
• RACCORD UNION FILETÉ
• RÁCOR 3 PIEZAS ROSCADO MACHO
MATERIAL: AISI 316L – 1.4404
FITTING: (**): AISI 316L – 1.4404
O-RING: HNBR giallo - yellow - Gelb - jaune -
amarillo
GASKET: (*): HNBR giallo - yellow - Gelb -
jaune - amarillo
THREAD: EN 10226-1 (ex ISO 7/1)
L
De x R
Z
CODE mm x inch mm mm Gasket g €
mm
184015002IG 15 x 1/2” 77 56 24x14 thk 2,5 137 4 140 59,16
184018002IG 18 x 1/2” 77 56 24x14 thk 2,5 139 4 120 67,35
184022002IG 22 x 3/4” 81 59 30x20 thk 2,5 194 4 80 69,36
184028002IG 28 x 1” 90 67 39x27 thk 2,5 350 4 48 113,56
184035002IG 35 x 1”1/4 101 74 44,5x34 thk 2,5 518 1 35 144,92

B 10 13
184/003 INOX G

BOCCHETTONE SEDE PIANA FILETTO F
• STRAIGHT FEMALE UNION CONNECTOR
• DURCHGANGSVERSCHRAUBUNG MIT
INNENGEWINDE
• RACCORD UNION TARAUDÉ
• RÁCOR 3 PIEZAS HEMBRA
MATERIAL: AISI 316L – 1.4404
FITTING: (**): AISI 316L – 1.4404
O-RING: HNBR giallo - yellow - Gelb - jaune -
amarillo
GASKET: (*): HNBR giallo - yellow - Gelb -
jaune - amarillo
THREAD: EN 10226-1 (ex ISO 7/1)
L
De x Rp
Z
CODE mm x inch mm mm Gasket g €
mm
184015003IG 15 x 1/2” 71 50 24x14 thk 2,5 135 4 140 59,16
184018003IG 18 x 1/2” 72 51 24x14 thk 2,5 140 4 100 71,31
184022003IG 22 x 3/4” 76 54 30x20 thk 2,5 206 4 80 77,55
184028003IG 28 x 1” 83 60 39x27 thk 2,5 387 4 48 97,92
184035003IG 35 x 1”1/4 93 66 44,5x34 thk 2,5 467 1 30 121,43
