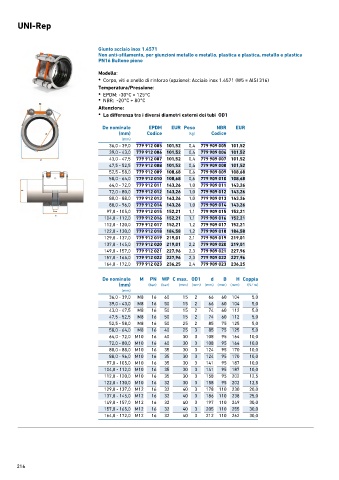

Page 214 - GEORGFISCHER - LISTINO 884 - FIDRA

UNI-Rep

Giunto acciaio inox 1.4571
Non anti-sfilamento, per giunzioni metallo e metallo, plastica e plastica, metallo e plastica
PN16 Bullone pieno
Modello:
• Corpo, viti e anello di rinforzo (opzione): Acciaio inox 1.4571 (W5 = AISI 316)

Temperatura/Pressione:
• EPDM: -30°C + 125°C
• NBR: -20°C + 80°C

Attenzione:
• La differenza tra i diversi diametri esterni dei tubi OD1

De nominale EPDM EUR Peso NBR EUR
(mm) Codice (kg) Codice
(mm)
36,0 - 39,0 779 912 005 101,52 0,4 779 909 005 101,52
39,0 - 43,0 779 912 006 101,52 0,4 779 909 006 101,52
43,0 - 47,5 779 912 007 101,52 0,4 779 909 007 101,52
47,5 - 52,5 779 912 008 101,52 0,4 779 909 008 101,52
52,5 - 58,0 779 912 009 108,68 0,6 779 909 009 108,68
58,0 - 64,0 779 912 010 108,68 0,6 779 909 010 108,68
64,0 - 72,0 779 912 011 143,26 1,0 779 909 011 143,26
72,0 - 80,0 779 912 012 143,26 1,0 779 909 012 143,26
80,0 - 88,0 779 912 013 143,26 1,0 779 909 013 143,26
88,0 - 96,0 779 912 014 143,26 1,0 779 909 014 143,26
97,0 - 105,0 779 912 015 152,21 1,1 779 909 015 152,21
104,0 - 112,0 779 912 016 152,21 1,1 779 909 016 152,21
112,0 - 120,0 779 912 017 152,21 1,2 779 909 017 152,21
122,0 - 130,0 779 912 018 184,58 1,2 779 909 018 184,58
129,0 - 137,0 779 912 019 219,01 2,1 779 909 019 219,01
137,0 - 145,0 779 912 020 219,01 2,2 779 909 020 219,01
149,0 - 157,0 779 912 021 227,96 2,3 779 909 021 227,96
157,0 - 165,0 779 912 022 227,96 2,3 779 909 022 227,96
164,0 - 172,0 779 912 023 236,25 2,4 779 909 023 236,25

De nominale M PN WP C max. OD1 d B H Coppia
(mm) (bar) (bar) (mm) (mm) (mm) (mm) (mm) (N ⁄ m)
(mm)
36,0 - 39,0 M8 16 60 15 2 66 60 104 5,0
39,0 - 43,0 M8 16 50 15 2 66 60 104 5,0
43,0 - 47,5 M8 16 50 15 2 74 60 112 5,0
47,5 - 52,5 M8 16 50 15 2 74 60 112 5,0
52,5 - 58,0 M8 16 50 25 2 85 75 125 5,0
58,0 - 64,0 M8 16 40 25 3 85 75 125 5,0
64,0 - 72,0 M10 16 40 30 3 108 95 164 10,0
72,0 - 80,0 M10 16 40 30 3 108 95 164 10,0
80,0 - 88,0 M10 16 35 30 3 124 95 170 10,0
88,0 - 96,0 M10 16 35 30 3 124 95 170 10,0
97,0 - 105,0 M10 16 35 30 3 141 95 187 10,0
104,0 - 112,0 M10 16 35 30 3 141 95 187 10,0
112,0 - 120,0 M10 16 35 30 3 158 95 202 12,5
122,0 - 130,0 M10 16 32 30 3 158 95 202 12,5
129,0 - 137,0 M12 16 32 40 3 178 110 230 20,0
137,0 - 145,0 M12 16 32 40 3 186 110 238 25,0
149,0 - 157,0 M12 16 32 40 3 197 110 249 30,0
157,0 - 165,0 M12 16 32 40 3 205 110 255 30,0
164,0 - 172,0 M12 16 32 40 3 212 110 262 30,0
