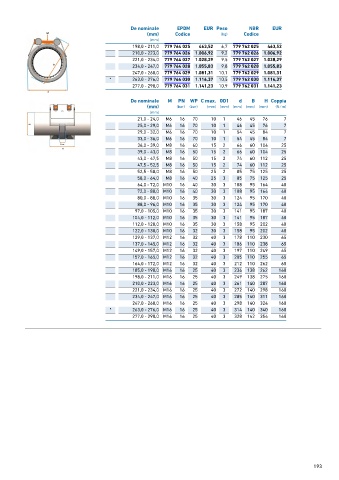

Page 191 - GEORGFISCHER - LISTINO 884 - FIDRA

De nominale EPDM EUR Peso NBR EUR
(mm) Codice (kg) Codice
(mm)
198,0 - 211,0 779 764 025 463,52 6,7 779 762 025 463,52
210,0 - 223,0 779 764 026 1.006,92 9,2 779 762 026 1.006,92
221,0 - 234,0 779 764 027 1.028,29 9,5 779 762 027 1.028,29
234,0 - 247,0 779 764 028 1.055,83 9,8 779 762 028 1.055,83
247,0 - 260,0 779 764 029 1.081,31 10,1 779 762 029 1.081,31
* 263,0 - 276,0 779 764 030 1.114,37 10,5 779 762 030 1.114,37
277,0 - 290,0 779 764 031 1.141,23 10,9 779 762 031 1.141,23

De nominale M PN WP C max. OD1 d B H Coppia
(mm) (bar) (bar) (mm) (mm) (mm) (mm) (mm) (N ⁄ m)
(mm)
21,0 - 24,0 M6 16 70 10 1 46 45 76 7
25,0 - 29,0 M6 16 70 10 1 46 45 76 7
29,0 - 32,0 M6 16 70 10 1 54 45 84 7
33,0 - 36,0 M6 16 70 10 1 54 45 84 7
36,0 - 39,0 M8 16 60 15 2 66 60 104 25
39,0 - 43,0 M8 16 50 15 2 66 60 104 25
43,0 - 47,5 M8 16 50 15 2 74 60 112 25
47,5 - 52,5 M8 16 50 15 2 74 60 112 25
52,5 - 58,0 M8 16 50 25 2 85 75 125 25
58,0 - 64,0 M8 16 40 25 3 85 75 125 25
64,0 - 72,0 M10 16 40 30 3 108 95 164 40
72,0 - 80,0 M10 16 40 30 3 108 95 164 40
80,0 - 88,0 M10 16 35 30 3 124 95 170 40
88,0 - 96,0 M10 16 35 30 3 124 95 170 40
97,0 - 105,0 M10 16 35 30 3 141 95 187 40
104,0 - 112,0 M10 16 35 30 3 141 95 187 40
112,0 - 120,0 M10 16 35 30 3 158 95 202 40
122,0 - 130,0 M10 16 32 30 3 158 95 202 40
129,0 - 137,0 M12 16 32 40 3 178 110 230 65
137,0 - 145,0 M12 16 32 40 3 186 110 238 65
149,0 - 157,0 M12 16 32 40 3 197 110 249 65
157,0 - 165,0 M12 16 32 40 3 205 110 255 65
164,0 - 172,0 M12 16 32 40 3 212 110 262 65
185,0 - 198,0 M16 16 25 40 3 236 138 262 160
198,0 - 211,0 M16 16 25 40 3 249 138 275 160
210,0 - 223,0 M16 16 25 40 3 261 140 287 160
221,0 - 234,0 M16 16 25 40 3 272 140 298 160
234,0 - 247,0 M16 16 25 40 3 285 140 311 160
247,0 - 260,0 M16 16 25 40 3 298 140 324 160
* 263,0 - 276,0 M16 16 25 40 3 314 140 340 160
277,0 - 290,0 M16 16 25 40 3 328 142 354 160

193
