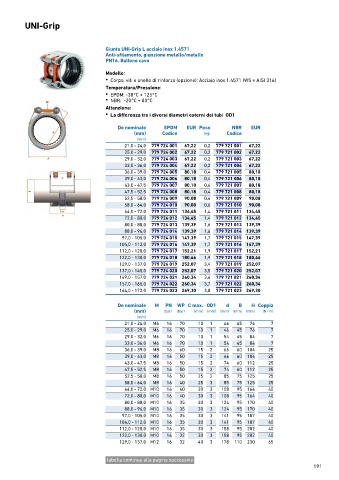

Page 189 - GEORGFISCHER - LISTINO 884 - FIDRA

UNI-Grip

Giunto UNI-Grip L acciaio inox 1.4571
Anti-sfilamento, giunzione metallo/metallo
PN16. Bullone cavo
Modello:
• Corpo, viti e anello di rinforzo (opzione): Acciaio inox 1.4571 (W5 = AISI 316)

Temperatura/Pressione:
• EPDM: -30°C + 125°C
• NBR: -20°C + 80°C

Attenzione:
• La differenza tra i diversi diametri esterni dei tubi OD1

De nominale EPDM EUR Peso NBR EUR
(mm) Codice (kg) Codice
(mm)
21,0 - 24,0 779 724 001 67,22 0,2 779 721 001 67,22
25,0 - 29,0 779 724 002 67,22 0,2 779 721 002 67,22
29,0 - 32,0 779 724 003 67,22 0,2 779 721 003 67,22
33,0 - 36,0 779 724 004 67,22 0,2 779 721 004 67,22
36,0 - 39,0 779 724 005 80,18 0,4 779 721 005 80,18
39,0 - 43,0 779 724 006 80,18 0,4 779 721 006 80,18
43,0 - 47,5 779 724 007 80,18 0,4 779 721 007 80,18
47,5 - 52,5 779 724 008 80,18 0,4 779 721 008 80,18
52,5 - 58,0 779 724 009 90,08 0,6 779 721 009 90,08
58,0 - 64,0 779 724 010 90,08 0,6 779 721 010 90,08
64,0 - 72,0 779 724 011 134,45 1,4 779 721 011 134,45
72,0 - 80,0 779 724 012 134,45 1,4 779 721 012 134,45
80,0 - 88,0 779 724 013 139,39 1,6 779 721 013 139,39
88,0 - 96,0 779 724 014 139,39 1,6 779 721 014 139,39
97,0 - 105,0 779 724 015 147,39 1,7 779 721 015 147,39
104,0 - 112,0 779 724 016 147,39 1,7 779 721 016 147,39
112,0 - 120,0 779 724 017 152,21 1,9 779 721 017 152,21
122,0 - 130,0 779 724 018 180,46 1,9 779 721 018 180,46
129,0 - 137,0 779 724 019 252,07 3,4 779 721 019 252,07
137,0 - 145,0 779 724 020 252,07 3,5 779 721 020 252,07
149,0 - 157,0 779 724 021 260,34 3,6 779 721 021 260,34
157,0 - 165,0 779 724 022 260,34 3,7 779 721 022 260,34
164,0 - 172,0 779 724 023 269,30 3,8 779 721 023 269,30

De nominale M PN WP C max. OD1 d B H Coppia
(mm) (bar) (bar) (mm) (mm) (mm) (mm) (mm) (N ⁄ m)
(mm)
21,0 - 24,0 M6 16 70 10 1 46 45 76 7
25,0 - 29,0 M6 16 70 10 1 46 45 76 7
29,0 - 32,0 M6 16 70 10 1 54 45 84 7
33,0 - 36,0 M6 16 70 10 1 54 45 84 7
36,0 - 39,0 M8 16 60 15 2 66 60 104 25
39,0 - 43,0 M8 16 50 15 2 66 60 104 25
43,0 - 47,5 M8 16 50 15 2 74 60 112 25
47,5 - 52,5 M8 16 50 15 2 74 60 112 25
52,5 - 58,0 M8 16 50 25 2 85 75 125 25
58,0 - 64,0 M8 16 40 25 3 85 75 125 25
64,0 - 72,0 M10 16 40 30 3 108 95 164 40
72,0 - 80,0 M10 16 40 30 3 108 95 164 40
80,0 - 88,0 M10 16 35 30 3 124 95 170 40
88,0 - 96,0 M10 16 35 30 3 124 95 170 40
97,0 - 105,0 M10 16 35 30 3 141 95 187 40
104,0 - 112,0 M10 16 35 30 3 141 95 187 40
112,0 - 120,0 M10 16 35 30 3 158 95 202 40
122,0 - 130,0 M10 16 32 30 3 158 95 202 40
129,0 - 137,0 M12 16 32 40 3 178 110 230 65

tabella continua alla pagina successiva
