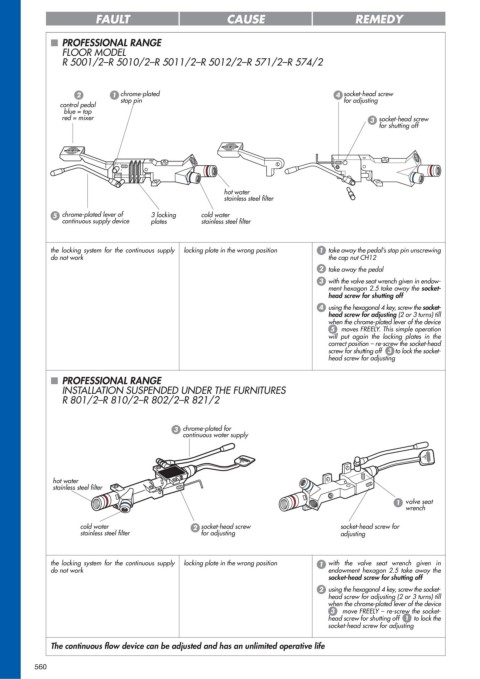

FAULT CAUSE REMEDY

Q PROFESSIONAL RANGE
FLOOR MODEL
R 5001/2–R 5010/2–R 5011/2–R 5012/2–R 571/2–R 574/2

2 1 chrome-plated 4 socket-head screw
stop pin for adjusting
control pedal
blue = tap
red = mixer 3 socket-head screw
for shutting off

hot water
stainless steel filter

5 chrome-plated lever of 3 locking cold water
continuous supply device plates stainless steel filter

the locking system for the continuous supply locking plate in the wrong position 1 take away the pedal’s stop pin unscrewing
do not work the cap nut CH12
2 take away the pedal
3 with the valve seat wrench given in endow-
ment hexagon 2.5 take away the socket-
head screw for shutting off
4 using the hexagonal 4 key, screw the socket-
head screw for adjusting (2 or 3 turns) till
when the chrome-plated lever of the device
5
moves FREELY. This simple operation
will put again the locking plates in the
correct position – re-screw the socket-head
screw for shutting off to lock the socket-
3
head screw for adjusting
Q PROFESSIONAL RANGE
INSTALLATION SUSPENDED UNDER THE FURNITURES
R 801/2–R 810/2–R 802/2–R 821/2

3 chrome-plated for
continuous water supply

hot water
stainless steel filter

1 valve seat
wrench
cold water 2 socket-head screw socket-head screw for
stainless steel filter for adjusting adjusting

the locking system for the continuous supply locking plate in the wrong position 1 with the valve seat wrench given in
do not work endowment hexagon 2.5 take away the
socket-head screw for shutting off
2 using the hexagonal 4 key, screw the socket-
head screw for adjusting (2 or 3 turns) till
when the chrome-plated lever of the device
3
move FREELY – re-screw the socket-
1
head screw for shutting off to lock the
socket-head screw for adjusting
The continuous flow device can be adjusted and has an unlimited operative life
