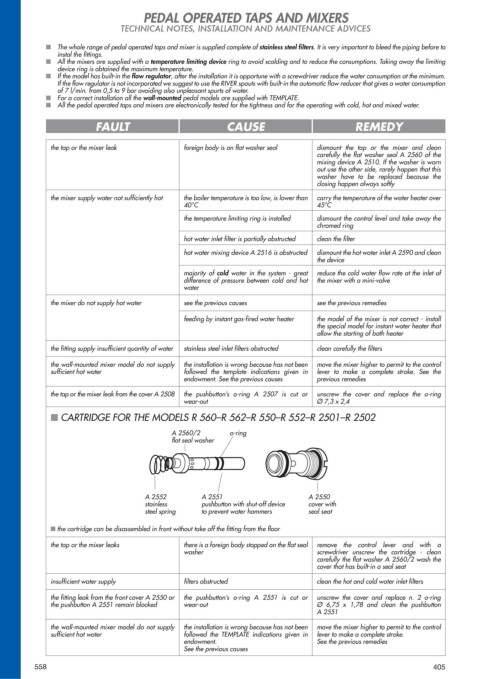

PEDAL OPERATED TAPS AND MIXERS
TECHNICAL NOTES, INSTALLATION AND MAINTENANCE ADVICES

Q The whole range of pedal operated taps and mixer is supplied complete of stainless steel filters. It is very important to bleed the piping before to
instal the fittings.
Q All the mixers are supplied with a temperature limiting device ring to avoid scalding and to reduce the consumptions. Taking away the limiting
device ring is obtained the maximum temperature.
Q If the model has built-in the flow regulator, after the installation it is opportune with a screwdriver reduce the water consumption at the minimum.
If the flow regulator is not incorporated we suggest to use the RIVER spouts with built-in the automatic flow reducer that gives a water consumption
of 7 l/min. from 0,5 to 9 bar avoiding also unpleasant spurts of water.
Q For a correct installation all the wall-mounted pedal models are supplied with TEMPLATE.
Q All the pedal operated taps and mixers are electronically tested for the tightness and for the operating with cold, hot and mixed water.

FAULT CAUSE REMEDY

the tap or the mixer leak foreign body is on flat washer seal dismount the tap or the mixer and clean
carefully the flat washer seal A 2560 of the
mixing device A 2510. If the washer is worn
out use the other side, rarely happen that this
washer have to be replaced because the
closing happen always softly
the mixer supply water not sufficiently hot the boiler temperature is too low, is lower than carry the temperature of the water heater over
40°C 45°C
the temperature limiting ring is installed dismount the control level and take away the
chromed ring
hot water inlet filter is partially obstructed clean the filter

hot water mixing device A 2516 is obstructed dismount the hot water inlet A 2590 and clean
the device
majority of cold water in the system - great reduce the cold water flow rate at the inlet of
difference of pressure between cold and hot the mixer with a mini-valve
water
the mixer do not supply hot water see the previous causes see the previous remedies

feeding by instant gas-fired water heater the model of the mixer is not correct - install
the special model for instant water heater that
allow the starting of bath heater

the fitting supply insufficient quantity of water stainless steel inlet filters obstructed clean carefully the filters
the wall-mounted mixer model do not supply the installation is wrong because has not been move the mixer higher to permit to the control
sufficient hot water followed the template indications given in lever to make a complete stroke. See the
endowment. See the previous causes previous remedies

the tap or the mixer leak from the cover A 2508 the pushbutton’s o-ring A 2507 is cut or unscrew the cover and replace the o-ring
wear-out Ø 7,3 x 2,4
Q CARTRIDGE FOR THE MODELS R 560–R 562–R 550–R 552–R 2501–R 2502

A 2560/2 o-ring
flat seal washer

A 2552 A 2551 A 2550
stainless pushbutton with shut-off device cover with
steel spring to prevent water hammers seal seat

Q the cartridge can be disassembled in front without take off the fitting from the floor
the tap or the mixer leaks there is a foreign body stopped on the flat seal remove the control lever and with a
washer screwdriver unscrew the cartridge - clean
carefully the flat washer A 2560/2 wash the
cover that has built-in a seal seat

insufficient water supply filters obstructed clean the hot and cold water inlet filters
the fitting leak from the front cover A 2550 or the pushbutton’s o-ring A 2551 is cut or unscrew the cover and replace n. 2 o-ring
the pushbutton A 2551 remain blocked wear-out Ø 6,75 x 1,78 and clean the pushbutton
A 2551

the wall-mounted mixer model do not supply the installation is wrong because has not been move the mixer higher to permit to the control
sufficient hot water followed the TEMPLATE indications given in lever to make a complete stroke.
endowment. See the previous remedies
See the previous causes
