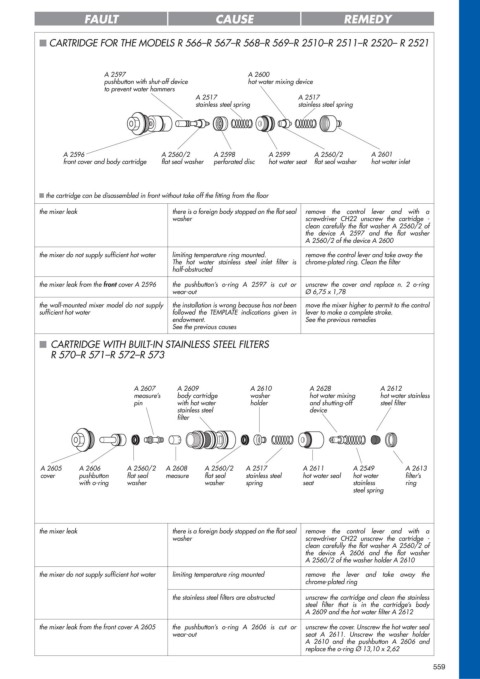

FAULT CAUSE REMEDY

Q CARTRIDGE FOR THE MODELS R 566–R 567–R 568–R 569–R 2510–R 2511–R 2520– R 2521

A 2597 A 2600
pushbutton with shut-off device hot water mixing device
to prevent water hammers
A 2517 A 2517
stainless steel spring stainless steel spring

A 2596 A 2560/2 A 2598 A 2599 A 2560/2 A 2601
front cover and body cartridge flat seal washer perforated disc hot water seat flat seal washer hot water inlet

Q the cartridge can be disassembled in front without take off the fitting from the floor
the mixer leak there is a foreign body stopped on the flat seal remove the control lever and with a
washer screwdriver CH22 unscrew the cartridge -
clean carefully the flat washer A 2560/2 of
the device A 2597 and the flat washer
A 2560/2 of the device A 2600
the mixer do not supply sufficient hot water limiting temperature ring mounted. remove the control lever and take away the
The hot water stainless steel inlet filter is chrome-plated ring. Clean the filter
half-obstructed

the mixer leak from the front cover A 2596 the pushbutton’s o-ring A 2597 is cut or unscrew the cover and replace n. 2 o-ring
wear-out Ø 6,75 x 1,78
the wall-mounted mixer model do not supply the installation is wrong because has not been move the mixer higher to permit to the control
sufficient hot water followed the TEMPLATE indications given in lever to make a complete stroke.
endowment. See the previous remedies
See the previous causes

Q CARTRIDGE WITH BUILT-IN STAINLESS STEEL FILTERS
R 570–R 571–R 572–R 573

A 2607 A 2609 A 2610 A 2628 A 2612
measure’s body cartridge washer hot water mixing hot water stainless
pin with hot water holder and shutting-off steel filter
stainless steel device
filter

A 2605 A 2606 A 2560/2 A 2608 A 2560/2 A 2517 A 2611 A 2549 A 2613
cover pushbutton flat seal measure flat seal stainless steel hot water seal hot water filter’s
with o-ring washer washer spring seat stainless ring
steel spring

the mixer leak there is a foreign body stopped on the flat seal remove the control lever and with a
washer screwdriver CH22 unscrew the cartridge -
clean carefully the flat washer A 2560/2 of
the device A 2606 and the flat washer
A 2560/2 of the washer holder A 2610

the mixer do not supply sufficient hot water limiting temperature ring mounted remove the lever and take away the
chrome-plated ring
the stainless steel filters are obstructed unscrew the cartridge and clean the stainless
steel filter that is in the cartridge’s body
A 2609 and the hot water filter A 2612

the mixer leak from the front cover A 2605 the pushbutton’s o-ring A 2606 is cut or unscrew the cover. Unscrew the hot water seal
wear-out seat A 2611. Unscrew the washer holder
A 2610 and the pushbutton A 2606 and
replace the o-ring Ø 13,10 x 2,62
