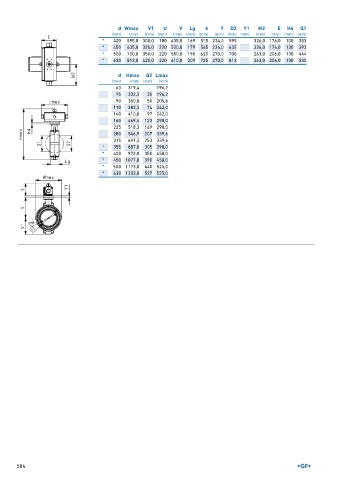

Page 504 - GEORGFISCHER - LISTINO 897

d Wmax V1 U V Lg k Y D2 Y1 M2 E H4 Q1
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
* 400 595,0 300,0 180 435,0 169 515 234,0 595 326,0 176,0 100 353
* 450 635,0 320,0 220 520,0 179 565 234,0 635 326,0 176,0 130 393
* 500 700,0 350,0 220 550,0 190 620 270,0 700 263,0 206,0 130 444
* 630 813,0 420,0 220 610,0 209 725 270,0 813 263,0 206,0 130 530

d Hmax Q2 Lmax
(mm) (mm) (mm) (mm)
63 319,4 196,2
75 332,3 35 196,2
90 350,0 50 205,6
110 383,3 74 242,0
140 410,0 97 242,0
160 469,4 123 290,0
225 518,3 169 290,0
280 546,9 207 339,6
315 691,3 253 339,6
* 355 887,0 305 390,0
* 400 972,0 350 458,0
* 450 1077,0 390 458,0
* 500 1173,0 440 525,0
* 630 1303,0 527 525,0

504
