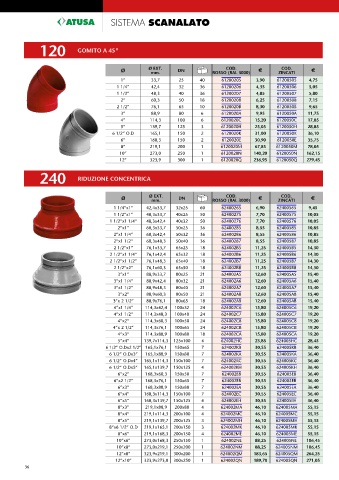

Page 36 - ATUSA - LISTINO 2023

SISTEMA SCANALATO

120 GOMITO A 45º

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
1” 33,7 25 40 61200205 3,90 61200505 4,75
1 1/4” 42,4 32 36 61200206 4,35 61200506 5,05
1 1/2” 48,3 40 36 61200207 4,85 61200507 5,80
2” 60,3 50 18 61200208 6,25 61200508 7,15
2 1/2” 76,1 65 10 6120020B 8,30 6120050B 9,65
3” 88,9 80 6 6120020A 9,95 6120050A 11,75
4” 114,3 100 6 6120020C 15,20 6120050C 17,85
5” 139,7 125 3 6120020H 25,05 6120050H 28,85
6 1/2” O.D 165,1 150 2 6120020K 31,00 6120050K 36,10
6” 168,3 150 2 6120020E 30,90 6120050E 35,75
8” 219,1 200 1 6120020M 67,85 6120050M 78,05
10” 273,0 250 1 6120020N 140,20 6120050N 162,15
12” 323,9 300 1 6120020Q 236,95 6120050Q 279,45

240 RIDUZIONE CONCENTRICA

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
1 1/4”x1” 42,4x33,7 32x25 60 62400265 6,90 62400565 9,45
1 1/2”x1” 48,3x33,7 40x25 50 62400275 7,70 62400575 10,05
1 1/2”x1 1/4” 48,3x42,4 40x32 50 62400276 7,70 62400576 10,05
2”x1” 60,3x33,7 50x25 36 62400285 8,55 62400585 10,85
2”x1 1/4” 60,3x42,4 50x32 36 62400286 8,55 62400586 10,85
2”x1 1/2” 60,3x48,3 50x40 36 62400287 8,55 62400587 10,85
2 1/2”x1” 76,1x33,7 65x25 18 624002B5 11,25 624005B5 14,30
2 1/2”x1 1/4” 76,1x42,4 65x32 18 624002B6 11,25 624005B6 14,30
2 1/2”x1 1/2” 76,1x48,3 65x40 18 624002B7 11,25 624005B7 14,30
2 1/2”x2” 76,1x60,3 65x50 18 624002B8 11,25 624005B8 14,30
3”x1” 88,9x33,7 80x25 21 624002A5 12,60 624005A5 15,40
3”x1 1/4” 88,9x42,4 80x32 21 624002A6 12,60 624005A6 15,40
3”x1 1/2” 88,9x48,3 80x40 21 624002A7 12,60 624005A7 15,40
3”x2” 88,9x60,3 80x50 21 624002A8 12,60 624005A8 15,40
3”x 2 1/2” 88,9x76,1 80x65 18 624002AB 12,60 624005AB 15,40
4”x1 1/4” 114,3x42,4 100x32 24 624002C6 15,80 624005C6 19,20
4”x1 1/2” 114,3x48,3 100x40 24 624002C7 15,80 624005C7 19,20
4”x2” 114,3x60,3 100x50 24 624002C8 15,80 624005C8 19,20
4”x 2 1/2” 114,3x76,1 100x65 24 624002CB 15,80 624005CB 19,20
4”x3” 114,3x88,9 100x80 18 624002CA 15,80 624005CA 19,20
5”x4” 139,7x114,3 125x100 4 624002HC 23,85 624005HC 28,45
6 1/2” O.Dx2 1/2” 165,1x76,1 150x65 7 624002KB 30,55 624005KB 36,40
6 1/2” O.Dx3” 165,1x88,9 150x80 7 624002KA 30,55 624005KA 36,40
6 1/2” O.Dx4” 165,1x114,3 150x100 7 624002KC 30,55 624005KC 36,40
6 1/2” O.Dx5” 165,1x139,7 150x125 4 624002KH 30,55 624005KH 36,40
6”x2” 168,3x60,3 150x50 7 624002E8 30,55 624005E8 36,40
6”x2 1/2” 168,3x76,1 150x65 7 624002EB 30,55 624005EB 36,40
6”x3” 168,3x88,9 150x80 7 624002EA 30,55 624005EA 36,40
6”x4” 168,3x114,3 150x100 7 624002EC 30,55 624005EC 36,40
6”x5” 168,3x139,7 150x125 4 624002EH 30,55 624005EH 36,40
8”x3” 219,1x88,9 200x80 4 624002MA 46,10 624005MA 55,15
8”x4” 219,1x114,3 200x100 4 624002MC 46,10 624005MC 55,15
8”x5” 219,1x139,7 200x125 3 624002MH 46,10 624005MH 55,15
8”x6 1/2” O.D 219,1x165,1 200x150 3 624002MK 46,10 624005MK 55,15
8”x6” 219,1x168,3 200x150 4 624002ME 46,10 624005ME 55,15
10”x6” 273,0x168,3 250x150 1 624002NE 88,25 624005NE 106,45
10”x8” 273,0x219,1 250x200 1 624002NM 88,25 624005NM 106,45
12”x8” 323,9x219,1 300x200 1 624002QM 183,65 624005QM 264,25
12”x10” 323,9x273,0 300x250 1 624002QN 189,70 624005QN 271,05
36
