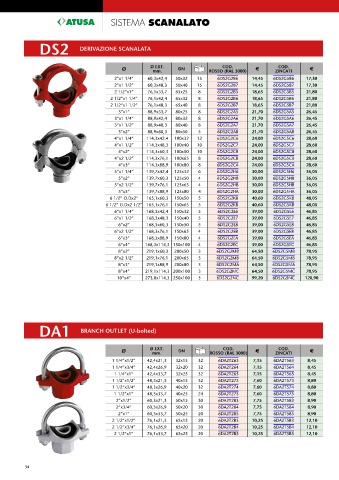

Page 34 - ATUSA - LISTINO 2023

SISTEMA SCANALATO

DS2 DERIVAZIONE SCANALATA 90

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
2”x1 1/4” 60,3x42,4 50x32 15 6DS2G286 14,45 6DS2G586 17,30
2”x1 1/2” 60,3x48,3 50x40 15 6DS2G287 14,45 6DS2G587 17,30
2 1/2”x1” 76,1x33,7 65x25 8 6DS2G2B5 18,65 6DS2G5B5 21,80
2 1/2”x1 1/4” 76,1x42,4 65x32 8 6DS2G2B6 18,65 6DS2G5B6 21,80
2 1/2”x1 1/2” 76,1x48,3 65x40 8 6DS2G2B7 18,65 6DS2G5B7 21,80
3”x1” 88,9x33,7 80x25 8 6DS2G2A5 21,70 6DS2G5A5 26,45
3”x1 1/4” 88,9x42,4 80x32 8 6DS2G2A6 21,70 6DS2G5A6 26,45
3”x1 1/2” 88,9x48,3 80x40 8 6DS2G2A7 21,70 6DS2G5A7 26,45
3”x2” 88,9x60,3 80x50 5 6DS2G2A8 21,70 6DS2G5A8 26,45
4”x1 1/4” 114,3x42,4 100x32 12 6DS2G2C6 24,00 6DS2G5C6 28,60
4”x1 1/2” 114,3x48,3 100x40 10 6DS2G2C7 24,00 6DS2G5C7 28,60
4”x2” 114,3x60,3 100x50 10 6DS2G2C8 24,00 6DS2G5C8 28,60
4”x2 1/2” 114,3x76,1 100x65 8 6DS2G2CB 24,00 6DS2G5CB 28,60
4”x3” 114,3x88,9 100x80 8 6DS2G2CA 24,00 6DS2G5CA 28,60
5”x1 1/4” 139,7x42,4 125x32 6 6DS2G2H6 30,00 6DS2G5H6 36,05 90S
5”x2” 139,7x60,3 125x50 4 6DS2G2H8 30,00 6DS2G5H8 36,05
5”x2 1/2” 139,7x76,1 125x65 4 6DS2G2HB 30,00 6DS2G5HB 36,05
5”x3” 139,7x88,9 125x80 4 6DS2G2HA 30,00 6DS2G5HA 36,05
6 1/2” O.Dx2” 165,1x60,3 150x50 5 6DS2G2K8 40,60 6DS2G5K8 48,05
6 1/2” O.Dx2 1/2” 165,1x76,1 150x65 5 6DS2G2KB 40,60 6DS2G5KB 48,05
6”x1 1/4” 168,3x42,4 150x32 5 6DS2G2E6 39,00 6DS2G5E6 46,85
6”x1 1/2” 168,3x48,3 150x40 5 6DS2G2E7 39,00 6DS2G5E7 46,85
6”x2” 168,3x60,3 150x50 5 6DS2G2E8 39,00 6DS2G5E8 46,85
6”x2 1/2” 168,3x76,1 150x65 4 6DS2G2EB 39,00 6DS2G5EB 46,85
6”x3” 168,3x88,9 150x80 4 6DS2G2EA 39,00 6DS2G5EA 46,85
6”x4” 168,3x114,3 150x100 4 6DS2G2EC 39,00 6DS2G5EC 46,85
8”x2” 219,1x60,3 200x50 3 6DS2G2M8 64,50 6DS2G5M8 78,95
8”x2 1/2” 219,1x76,1 200x65 3 6DS2G2MB 64,50 6DS2G5MB 78,95
8”x3” 219,1x88,9 200x80 3 6DS2G2MA 64,50 6DS2G5MA 78,95
8”x4” 219,1x114,3 200x100 3 6DS2G2MC 64,50 6DS2G5MC 78,95
10”x4” 273,0x114,3 250x100 3 6DS2G2NC 99,20 6DS2G5NC 120,90

DA1 BRANCH OUTLET (U-bolted)

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
1 1/4”x1/2” 42,4x21,3 32x15 32 6DA2T263 7,15 6DA2T563 8,45
1 1/4”x3/4” 42,4x26,9 32x20 32 6DA2T264 7,15 6DA2T564 8,45
1 1/4”x1” 42,4x33,7 32x25 32 6DA2T265 7,15 6DA2T565 8,45
1 1/2”x1/2” 48,3x21,3 40x15 32 6DA2T273 7,60 6DA2T573 8,80
1 1/2”x3/4” 48,3x26,9 40x20 32 6DA2T274 7,60 6DA2T574 8,80
1 1/2”x1” 48,3x33,7 40x25 24 6DA2T275 7,60 6DA2T575 8,80
2”x1/2” 60,3x21,3 50x15 30 6DA2T283 7,75 6DA2T583 8,90
2”x3/4” 60,3x26,9 50x20 30 6DA2T284 7,75 6DA2T584 8,90
2”x1” 60,3x33,7 50x25 20 6DA2T285 7,75 6DA2T585 8,90
2 1/2”x1/2” 76,1x21,3 65x15 20 6DA2T2B3 10,25 6DA2T5B3 12,10
2 1/2”x3/4” 76,1x26,9 65x20 20 6DA2T2B4 10,25 6DA2T5B4 12,10
2 1/2”x1” 76,1x33,7 65x25 20 6DA2T2B5 10,25 6DA2T5B5 12,10

34
