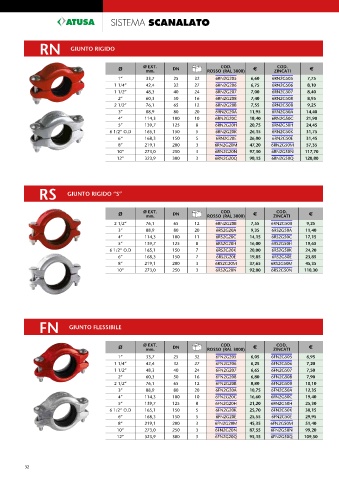

Page 32 - ATUSA - LISTINO 2023

SISTEMA SCANALATO

RN GIUNTO RIGIDO

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
1” 33,7 25 32 6RN2G205 6,60 6RN2G505 7,75
1 1/4” 42,4 32 27 6RN2G206 6,75 6RN2G506 8,10
1 1/2” 48,3 40 24 6RN2G207 7,00 6RN2G507 8,40
2” 60,3 50 16 6RN2G208 7,40 6RN2G508 8,95
2 1/2” 76,1 65 12 6RN2G20B 7,55 6RN2G50B 9,25
3” 88,9 80 20 6RN2G20A 11,95 6RN2G50A 14,40
4” 114,3 100 10 6RN2G20C 18,40 6RN2G50C 21,90
5” 139,7 125 8 6RN2G20H 20,75 6RN2G50H 24,45
6 1/2” O.D 165,1 150 5 6RN2G20K 26,15 6RN2G50K 31,75
6 “ 168,3 150 5 6RN2G20E 26,00 6RN2G50E 31,45
8” 219,1 200 3 6RN2G20M 47,20 6RN2G50M 57,35
10” 273,0 250 3 6RN2G20N 97,30 6RN2G50N 117,70
12” 323,9 300 3 6RN2G20Q 98,15 6RN2G50Q 120,80
DS1

RS GIUNTO RIGIDO “S”

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
2 1/2” 76,1 65 12 6RN2G20B 7,55 6RN2G50B 9,25
3” 88,9 80 20 6RS2G20A 9,35 6RS2G50A 11,40
4” 114,3 100 11 6RS2G20C 14,15 6RS2G50C 17,15
5” 139,7 125 8 6RS2G20H 16,00 6RS2G50H 19,65
6 1/2” O.D 165,1 150 7 6RS2G20K 20,00 6RS2G50K 24,20
6” 168,3 150 7 6RS2G20E 19,85 6RS2G50E 23,85
8” 219,1 200 3 6RS2G20M 37,65 6RS2G50M 45,35
10” 273,0 250 3 6RS2G20N 92,00 6RS2G50N 110,30

FN GIUNTO FLESSIBILE

COD.
COD.
Ø Ø EXT. DN ROSSO (RAL 3000) € ZINCATI €
mm.
1” 33,7 25 32 6FN2G205 6,05 6FN2G505 6,95
1 1/4” 42,4 32 27 6FN2G206 6,25 6FN2G506 7,20
1 1/2” 48,3 40 24 6FN2G207 6,65 6FN2G507 7,50
2” 60,3 50 16 6FN2G208 6,80 6FN2G508 7,90
2 1/2” 76,1 65 12 6FN2G20B 8,80 6FN2G50B 10,10
3” 88,9 80 20 6FN2G20A 10,75 6FN2G50A 12,35
4” 114,3 100 10 6FN2G20C 16,60 6FN2G50C 19,40
5” 139,7 125 8 6FN2G20H 21,20 6FN2G50H 25,30
6 1/2” O.D 165,1 150 5 6FN2G20K 25,70 6FN2G50K 30,15
6” 168,3 150 5 6FN2G20E 25,55 6FN2G50E 29,95
8” 219,1 200 3 6FN2G20M 45,35 6FN2G50M 51,40
10” 273,0 250 3 6FN2G20N 87,55 6FN2G50N 99,20
12” 323,9 300 3 6FN2G20Q 95,15 6FN2G50Q 109,50

32
