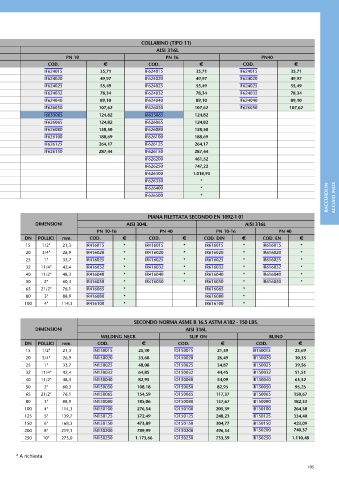

Page 105 - ATUSA - LISTINO 2023
P. 105
COLLARINO (TIPO 11) COLLARINO (TIPO 11)
DIMENSIONI AISI 304L AISI 316L
PN 10 PN 16 PN 40 PN 10 PN 16 PN40
DN POLLICI mm. COD. € COD. € COD. € COD. € COD. € COD. €
15 1/2" 21,3 IF424015 26,42 IF424015 26,42 IF424015 26,42 IF624015 35,71 IF624015 35,71 IF624015 35,71
20 3/4" 26,9 IF424020 39,21 IF424020 39,21 IF424020 39,21 IF624020 49,97 IF624020 49,97 IF624020 49,97
25 1" 33,7 IF424025 46,61 IF424025 46,61 IF424025 46,61 IF624025 55,49 IF624025 55,49 IF624025 55,49
32 11/4" 42,4 IF424032 68,70 IF424032 68,70 IF424032 68,70 IF624032 78,34 IF624032 78,34 IF624032 78,34
40 11/2" 48,3 IF424040 77,01 IF424040 77,01 IF424040 77,01 IF624040 89,10 IF624040 89,10 IF624040 89,10
50 2" 60,3 IF426050 79,25 IF426050 79,25 IF426050 79,25 IF626050 107,62 IF626050 107,62 IF626050 107,62
65 21/2" 76,1 I4633065 95,81 I4633065 95,81 I6633065 124,82 I6633065 124,82
21/2" 76,1 IF426065 95,81 IF426065 95,81 IF626065 124,82 IF626065 124,82
80 3" 88,9 IF426080 121,88 IF426080 121,88 IF626080 158,50 IF626080 158,50
100 4" 114,3 IF426100 149,90 IF426100 149,90 IF626100 188,69 IF626100 188,69
125 5" 139,7 IF426125 203,16 IF426125 203,16 IF626125 264,17 IF626125 264,17
150 6" 168,3 IF426150 258,37 IF426150 258,37 IF626150 287,44 IF626150 287,44
200 8" 219,1 IF426200 374,45 IF626200 461,52
250 10" 273,0 IF426250 717,03 IF626250 747,22
300 12" 323,9 IF426300 860,43 IF626300 1.018,93
350 14" 355,6 IF426350 * IF626350 *
RACCORDI IN ACCIAIO INOX
400 16" 406,4 IF426400 * IF626400 *
500 20" 508,0 IF426500 * IF626500 *
PIANA FILETTATA SECONDO EN 1092-1 01
DIMENSIONI AISI 304L AISI 316L
PN 10-16 PN 40 PN 10-16 PN 40
DN POLLICI mm. COD. € COD. € COD. DIN € COD. EN €
15 1/2" 21,3 IR416015 * IR416015 * IR616015 * IR616015 *
20 3/4" 26,9 IR416020 * IR416020 * IR616020 * IR616020 *
25 1" 33,7 IR416025 * IR416025 * IR616025 * IR616025 *
32 11/4" 42,4 IR416032 * IR416032 * IR616032 * IR616032 *
40 11/2" 48,3 IR416040 * IR416040 * IR616040 * IR616040 *
50 2" 60,3 IR416050 * IR416050 * IR616050 * IR616050 *
65 21/2" 76,1 IR416065 * IR616065 *
80 3" 88,9 IR416080 * IR616080 *
100 4" 114,3 IR416100 * IR616100 *
SECONDO NORMA ASME B 16.5 ASTM A182 - 150 LBS.
DIMENSIONI AISI 316L
WELDING NECK SLIP ON BLIND
DN POLLICI mm. COD. € COD. € COD. €
15 1/2" 21,3 IN150015 25,30 IO150015 21,59 IB150015 23,69
20 3/4" 26,9 IN150020 33,68 IO150020 26,49 IB150020 30,33
25 1" 33,7 IN150025 48,08 IO150025 34,87 IB150025 39,56
32 11/4" 42,4 IN150032 64,85 IO150032 44,45 IB150032 51,51
40 11/2" 48,3 IN150040 82,95 IO150040 54,09 IB150040 63,32
50 2" 60,3 IN150050 108,18 IO150050 82,95 IB150050 95,25
65 21/2" 76,1 IN150065 154,59 IO150065 117,37 IB150065 150,67
80 3" 88,9 IN150080 185,06 IO150080 137,67 IB150080 182,33
100 4" 114,3 IN150100 276,54 IO150100 205,39 IB150100 264,38
125 5" 139,7 IN150125 372,49 IO150125 248,23 IB150125 334,40
150 6" 168,3 IN150150 473,89 IO150150 304,77 IB150150 423,09
200 8" 219,1 IN150200 789,99 IO150200 496,54 IB150200 740,37
250 10" 273,0 IN150250 1.173,66 IO150250 733,59 IB150250 1.110,48
* A richiesta
105
