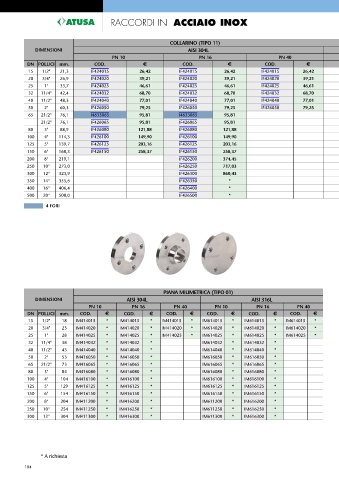

Page 104 - ATUSA - LISTINO 2023

RACCORDI IN ACCIAIO INOX

COLLARINO (TIPO 11) COLLARINO (TIPO 11)
DIMENSIONI AISI 304L AISI 316L
PN 10 PN 16 PN 40 PN 10 PN 16 PN40
DN POLLICI mm. COD. € COD. € COD. € COD. € COD. € COD. €
15 1/2" 21,3 IF424015 26,42 IF424015 26,42 IF424015 26,42 IF624015 35,71 IF624015 35,71 IF624015 35,71
20 3/4" 26,9 IF424020 39,21 IF424020 39,21 IF424020 39,21 IF624020 49,97 IF624020 49,97 IF624020 49,97
25 1" 33,7 IF424025 46,61 IF424025 46,61 IF424025 46,61 IF624025 55,49 IF624025 55,49 IF624025 55,49
32 11/4" 42,4 IF424032 68,70 IF424032 68,70 IF424032 68,70 IF624032 78,34 IF624032 78,34 IF624032 78,34
40 11/2" 48,3 IF424040 77,01 IF424040 77,01 IF424040 77,01 IF624040 89,10 IF624040 89,10 IF624040 89,10
50 2" 60,3 IF426050 79,25 IF426050 79,25 IF426050 79,25 IF626050 107,62 IF626050 107,62 IF626050 107,62
65 21/2" 76,1 I4633065 95,81 I4633065 95,81 I6633065 124,82 I6633065 124,82
21/2" 76,1 IF426065 95,81 IF426065 95,81 IF626065 124,82 IF626065 124,82
80 3" 88,9 IF426080 121,88 IF426080 121,88 IF626080 158,50 IF626080 158,50
100 4" 114,3 IF426100 149,90 IF426100 149,90 IF626100 188,69 IF626100 188,69
125 5" 139,7 IF426125 203,16 IF426125 203,16 IF626125 264,17 IF626125 264,17
150 6" 168,3 IF426150 258,37 IF426150 258,37 IF626150 287,44 IF626150 287,44
200 8" 219,1 IF426200 374,45 IF626200 461,52
250 10" 273,0 IF426250 717,03 IF626250 747,22
300 12" 323,9 IF426300 860,43 IF626300 1.018,93
350 14" 355,6 IF426350 * IF626350 *
400 16" 406,4 IF426400 * IF626400 *
500 20" 508,0 IF426500 * IF626500 *
4 FORI

PIANA MILIMETRICA (TIPO 01)
DIMENSIONI AISI 304L AISI 316L
PN 10 PN 16 PN 40 PN 10 PN 16 PN 40
DN POLLICI mm. COD. € COD. € COD. € COD. € COD. € COD. €
15 1/2" 18 IM414015 * IM414015 * IM414015 * IM614015 * IM614015 * IM614015 *
20 3/4" 23 IM414020 * IM414020 * IM414020 * IM614020 * IM614020 * IM614020 *
25 1" 28 IM414025 * IM414025 * IM414025 * IM614025 * IM614025 * IM614025 *
32 11/4" 38 IM414032 * IM414032 * IM614032 * IM614032 *
40 11/2" 43 IM414040 * IM414040 * IM614040 * IM614040 *
50 2" 53 IM416050 * IM416050 * IM616050 * IM616050 *
65 21/2" 73 IM416065 * IM416065 * IM616065 * IM616065 *
80 3" 84 IM416080 * IM416080 * IM616080 * IM616080 *
100 4" 104 IM416100 * IM416100 * IM616100 * IM616100 *
125 5" 129 IM416125 * IM416125 * IM616125 * IM616125 *
150 6" 154 IM416150 * IM416150 * IM616150 * IM616150 *
200 8" 204 IM411200 * IM416200 * IM611200 * IM616200 *
250 10" 254 IM411250 * IM416250 * IM611250 * IM616250 *
300 12" 304 IM411300 * IM416300 * IM611300 * IM616300 *

* A richiesta

104
