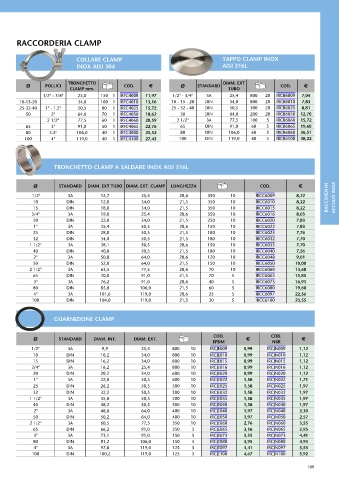

Page 109 - ATUSA - LISTINO 2023

RACCORDERIA CLAMP

COLLARE CLAMP TAPPO CLAMP INOX
INOX AISI 304 AISI 316L

TRONCHETTO DIAM. EXT
Ø POLLICI COD. E Ø STANDARD COD. E
CLAMP mm. TUBO
1/2" - 3/4" 25,0 150 1 IRFC4008 11,97 1/2" - 3/4" 3A 25,4 800 20 IRCB6009 7,04
10-15-20 34,0 100 1 IRFC4010 13,16 10 - 15 - 20 DIN 34,0 800 20 IRCB6010 7,83
25-32-40 1" - 1.5" 50,5 80 1 IRFC4025 15,72 25 - 32 - 40 DIN 50,5 300 20 IRCB6025 8,81
50 2" 64,0 70 1 IRFC4050 18,62 50 DIN 64,0 200 20 IRCB6050 12,70
2 1/2" 77,5 60 1 IRFC4060 20,59 2 1/2" 3A 77,5 100 5 IRCB6060 15,72
65 3" 91,0 50 1 IRFC4065 22,76 65 DIN 91,0 60 5 IRCB6065 19,60
80 3.5" 106,0 40 1 IRFC4080 25,52 80 DIN 106,0 60 5 IRCB6080 26,51
100 4" 119,0 40 1 IRFC4100 27,43 100 DIN 119,0 40 5 IRCB6100 38,22

TRONCHETTO CLAMP A SALDARE INOX AISI 316L

Ø STANDARD DIAM. EXT TUBO DIAM. EXT. CLAMP LUNGHEZZA COD. E
1/2" 3A 12,7 25,4 28,6 350 10 IRCC6009 8,22 RACCORDI IN ACCIAIO INOX
10 DIN 12,0 34,0 21,5 350 10 IRCC6010 8,22
15 DIN 18,0 34,0 21,5 350 10 IRCC6015 8,22
3/4" 3A 19,0 25,4 28,6 350 10 IRCC6016 8,03
20 DIN 22,0 34,0 21,5 250 10 IRCC6020 7,83
1" 3A 25,4 50,5 28,6 150 10 IRCC6022 7,83
25 DIN 28,0 50,5 21,5 180 10 IRCC6025 7,76
32 DIN 34,0 50,5 21,5 180 10 IRCC6032 7,70
1 1/2" 3A 38,1 50,5 28,6 150 10 IRCC6035 7,70
40 DIN 40,0 50,5 21,5 180 10 IRCC6040 7,56
2" 3A 50,8 64,0 28,6 120 10 IRCC6048 9,01
50 DIN 52,0 64,0 21,5 150 10 IRCC6050 10,00
2 1/2" 3A 63,5 77,5 28,6 70 10 IRCC6060 13,68
65 DIN 70,0 91,0 21,5 70 5 IRCC6065 15,85
3" 3A 76,2 91,0 28,6 40 5 IRCC6073 16,91
80 DIN 85,0 106,0 21,5 60 5 IRCC6080 19,60
4" 3A 101,6 119,0 28,6 25 5 IRCC6097 22,56
100 DIN 104,0 119,0 21,5 30 5 IRCC6100 23,55

GUARNIZIONE CLAMP

COD. COD.
Ø STANDARD DIAM. INT. DIAM. EXT. E E
EPDM NBR
1/2" 3A 9,9 25,4 800 10 IRCJE009 0,99 IRCJN009 1,12
10 DIN 10,2 34,0 800 10 IRCJE010 0,99 IRCJN010 1,12
15 DIN 16,2 34,0 800 10 IRCJE015 0,99 IRCJN015 1,12
3/4" 3A 16,2 25,4 800 10 IRCJE016 0,99 IRCJN016 1,12
20 DIN 20,2 34,0 600 10 IRCJE020 0,99 IRCJN020 1,12
1" 3A 22,8 50,5 600 10 IRCJE022 1,58 IRCJN022 1,71
25 DIN 26,2 50,5 500 10 IRCJE025 1,58 IRCJN025 1,97
32 DIN 32,2 50,5 500 10 IRCJE032 1,58 IRCJN032 1,97
1 1/2" 3A 35,8 50,5 500 10 IRCJE035 1,58 IRCJN035 1,97
40 DIN 38,2 50,5 500 10 IRCJE040 1,58 IRCJN040 1,97
2" 3A 48,8 64,0 400 10 IRCJE048 1,97 IRCJN048 2,30
50 DIN 50,2 64,0 400 10 IRCJE050 1,97 IRCJN050 2,57
2 1/2" 3A 60,5 77,5 350 10 IRCJE060 2,76 IRCJN060 3,55
65 DIN 66,2 91,0 350 5 IRCJE065 3,16 IRCJN065 3,95
3" 3A 73,1 91,0 150 5 IRCJE073 3,35 IRCJN073 4,41
80 DIN 81,2 106,0 150 5 IRCJE080 3,95 IRCJN080 4,93
4" 3A 97,8 119,0 125 5 IRCJE097 4,41 IRCJN097 5,53
100 DIN 100,2 119,0 125 5 IRCJE100 4,67 IRCJN100 5,92

109
