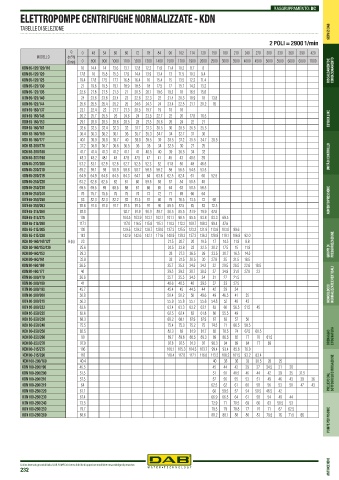

Page 234 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: BC
ELETTROPOMPE CENTRIFUGHE NORMALIZZATE - KDN

SERVIZI DAB
TABELLE DI SELEZIONE

2 POLI = 2900 1/min
Q 0 48 54 60 66 72 78 84 90 102 114 120 150 180 210 240 270 300 330 360 390 420
MODELLO (m /c)
3
(l/min) 0 800 900 1000 1100 1200 1300 1400 1500 1700 1900 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
KDN 65-125/120/110 16 14.4 14 13.6 13.1 12.8 12.2 11.9 11.4 10.2 8.7 8 RISCALDAMENTO E CONDIZIONAMENTO
KDN 65-125/120 17.8 16 15.8 15.3 17.9 14.4 13.9 13.4 13 11.5 10.3 9.4 RISCALDAMENTO E
KDN 65-125/125 19.4 17.8 17.5 17.1 16.8 16.4 16 15.4 15 13.5 12.2 11.4
KDN 65-125/130 21 19.6 19.5 19.1 18.9 18.5 18 17.5 17 15.7 14.2 13.2
KDN 65-125/135 22.6 21.8 21.5 21.3 21 20.5 20.1 19.6 19.2 18 16.5 15.6
KDN 65-125/140 24 23.6 23.6 23.4 23 22.8 22.3 22 21.4 20.3 18.9 18 13.8
KDN 65-125/144 25.6 25.5 25.4 25.2 25 24.6 24.3 24 23.4 22.5 21.1 20.2 16
KDN 65-160/137 23.1 22.4 22 21.7 21.3 20.5 19.7 19 18 16
KDN 65-160/145 26.2 25.7 25.5 25 24.6 24 23.5 22.7 22 20 17.8 16.5
KDN 65-160/153 29.1 28.8 28.5 28.6 28.5 28 27.5 26.6 26 24 22 21 ESYBOX LINE ESYBOX LINE
KDN 65-160/161 32.6 32.5 32.4 32.3 32 31.7 31.3 30.5 30 28.5 26.5 25.5
KDN 65-160/169 36.4 36.3 36.2 36.1 36 35.7 35.3 34.7 34 32.7 31 30
KDN 65-160/177 40.1 39.9 39.8 39.7 40 39.8 39.5 39 38.5 37.2 35.5 34.7 28.5
KDN 65-200/170 37.2 36.8 36.7 36.6 36.5 36 35 34 32.5 30 27 25
KDN 65-200/180 41.7 41.4 41.3 41.2 41.1 41 40.5 40 39 36.5 34 32
KDN 65-200/190 48.3 48.2 48.1 48 47.9 47.5 47 41 45 43 40.5 39 UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
KDN 65-200/200 53.2 53.1 52.9 52.8 52.7 52.5 52.3 52 51.8 50 48 46.5
KDN 65-200/210 59.2 59.1 59 58.9 58.8 58.7 58.5 58.2 58 56.5 54.5 53.5
KDN 65-200/219 64.9 64.9 64.8 64.5 64.3 64.1 64 63.8 62.5 62.4 61 60 52.5
KDN 65-250/220 63.2 62.8 62.5 62 61 60 59.5 58 57 54 50.5 48
KDN 65-250/230 69.5 69.5 69 68.5 68 67 66 65 64 63 58.5 56.5
KDN 65-250/240 76 75.7 75.5 75 75 74 73 72 71 69 66 64
KDN 65-250/250 83 82.3 82.3 82.2 82 81.5 81 80 79 76.5 73.5 72 60 AUMENTO PRESSIONE AUMENTO PRESSIONE
KDN 65-250/263 92.6 91.8 91.8 91.7 91.5 91.5 91 90 89.5 87.5 85 83 72.5
KDN 65-315/260 92.8 92.7 91.9 90.9 89.7 88.5 85.5 81.9 79.9 67.8
KDN 65-315/275 105 104.5 103.9 103.1 102.1 101.1 98.5 95.5 93.8 83.3 69.5
KDN 65-315/290 117.1 117.0 116.5 115.9 115.1 114.3 112.2 109.7 108.3 99.4 87.6
KDN 65-315/305 130 129.5 129.2 128.7 128.0 127.3 125.5 123.2 121.9 113.8 103.0 89.6
KDN 65-315/320 143 142.9 142.6 142.1 171.6 140.9 139.3 137.3 136.2 128.9 119.1 106.8 92.0
KDN 80-160/147/127 H (m) 23 21.5 20.7 20 19.5 17 14.5 11.8 8.8 PRESSURIZZAZIONE
KDN 80-160/153/136 25.6 24.5 23.8 23 22.5 20.2 17.5 15 11.8
KDN 80-160/153 29.3 28 27.3 26.5 26 23.5 20.7 16.5 14.5 GRUPPI DI GRUPPI DI
KDN 80-160/161 32.8 32 31.5 30.5 30 27.8 25 21.5 18.5
KDN 80-160/169 36.5 35.7 35.2 34.5 34.2 32 29.5 26.5 22.6 18.5
KDN 80-160/177 40 39.5 39.2 38.7 38.5 37 34.8 31.8 27.8 23
KDN 80-200/170 36.6 35.7 35.5 34.5 34 31 27 21.5
KDN 80-200/180 41 40.6 40.5 40 39.5 37 33 27.5 NORMALIZZATE E VERTICALI
KDN 80-200/190 45.7 45.4 45 44.5 44 42 29 34
KDN 80-200/200 50.8 50.4 50.2 50 49.6 49 46.5 41 35 MONOBLOCCO MONOBLOCCO
KDN 80-200/210 56.3 55.9 55.8 55.7 55.6 54.8 52 48 43
KDN 80-200/222 63.6 63.4 63.3 63.2 63.1 63 60 56.5 51.5 45
KDN 80-250/220 62.6 62.5 62.4 62 61.8 60 55.5 49
KDN 80-250/230 68.3 68.2 68.1 67.9 67.9 67 63 57 50
KDN 80-250/240 75.5 75.4 75.3 75.2 75 74.5 71 66.5 58.5
KDN 80-250/250 82.5 82.3 82 81.9 81.7 82 78.5 74 67.5 60.5
KDN 80-250/260 90 89.7 89.6 86.5 89.3 89 86.5 82 77 70 61.5 DRENAGGIO DRENAGGIO E FOGNATURA
KDN 80-250/270 97.9 97.8 97.5 91.3 97 96.3 94 89 84 77 69
KDN 80-315/275 106 106.1 105.3 104.3 103.7 99.4 93.4 85.6 76.0
KDN 80-315/290 118 118.4 117.8 117.1 116.6 113.2 108.2 101.5 93.2 83.4
KDN 100-200/180 40.4 40 38 36 33 30.5 28 25
KDN 100-200/190 46.5 45 44 42 39 37 34.5 31 28
KDN 100-200/200 51.5 51 50 48.5 46 44 42 39 35 31.5 SOTTOSUOLO E IRRIGAZIONE
KDN 100-200/210 57.5 57 56 55 53 51 49 46 43 39 36
KDN 100-200/219 64 62.5 62 61 60 58 56 53 50 47 43 PRELIEVO DAL PRELIEVO DAL
KDN 100-250/220 61.1 60 59.5 57 54 50.5 46.5 42
KDN 100-250/230 67.4 66.9 66.5 64 61 58 54 49 44
KDN 100-250/240 73.5 72.9 71 70.5 69 66 63 58.5 53
KDN 100-250/250 79.7 79.5 79 78.8 77 74 71 67 62.5
POMPE PER PISCINE POMPE PER PISCINE
KDN 100-250/260 88.6 88.2 88.1 88 86 83 79.5 76 71.5 66
