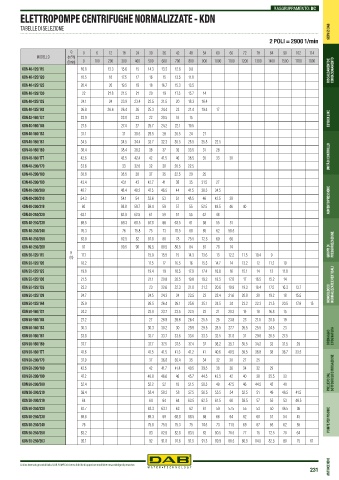

Page 233 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: BC
ELETTROPOMPE CENTRIFUGHE NORMALIZZATE - KDN

TABELLE DI SELEZIONE SERVIZI DAB

2 POLI = 2900 1/min

Q 0 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 102 114
MODELLO (m /c)
3
(l/min) 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1700 1900
KDN 40-125/115 16.8 13.3 15.6 15 14.3 13.2 12.6 9.8 RISCALDAMENTO E RISCALDAMENTO E CONDIZIONAMENTO
KDN 40-125/120 18.5 18 17.5 17 16 15 13.5 11.8
KDN 40-125/125 20.4 20 19.5 19 18 16.7 15.3 13.5
KDN 40-125/130 22 21.8 21.5 21 20 19 17.5 15.7 14
KDN 40-125/135 24.1 24 23.9 23.4 22.5 21.5 20 18.3 16.4
KDN 40-125/142 26.8 26.6 26.4 26 25.3 24.4 23 21.4 19.4 17
KDN 40-160/137 23.9 23.8 23 22 20.5 18 15 ESYBOX LINE ESYBOX LINE
KDN 40-160/145 27.5 27.4 27 25.7 24.2 22.1 19.5
KDN 40-160/153 31.1 31 30.5 29.5 28 26.5 24 21
KDN 40-160/161 34.5 34.5 34.4 33.7 32.3 30.5 28.5 25.8 22.5
KDN 40-160/169 38.4 38.4 38.2 38 37 35 33.5 31 28
KDN 40-160/177 42.6 42.5 42.4 42 41.5 40 38.5 35 33 30 UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
KDN 40-200/170 33.6 33 32.6 32 30 26.5 22.5
KDN 40-200/180 38.8 38.5 38 37 35 32.5 29 25
KDN 40-200/190 43.4 43.1 43 42.7 41 38 35 31.5 27
KDN 40-200/200 48.7 48.4 48.2 47.5 46.5 44 41.5 38.5 34.5
KDN 40-200/210 54.3 54.1 54 53.6 53 51 48.5 46 42.5 38 AUMENTO PRESSIONE AUMENTO PRESSIONE
KDN 40-200/219 60 59.8 59.7 59.4 59 57 55 52.5 49.5 46 40
KDN 40-250/220 63.1 62.8 62.5 61 59 57 55 52 48
KDN 40-250/230 69.5 69.3 68.5 67.8 66 63.5 61 58 55 51
KDN 40-250/240 76.3 76 75.8 75 73 70.5 68 65 62 58.5
KDN 40-250/250 82.8 82.5 82 81.8 80 78 75.5 72.5 69 66
KDN 40-250/260 91 90.5 90 89.5 88.5 86.5 84 81 78 74 PRESSURIZZAZIONE
H
KDN 50-125/115 (m) 17.1 15.9 15.5 15 14.3 13.6 13 12.2 11.5 10.4 9 GRUPPI DI GRUPPI DI
KDN 50-125/120 18.2 17.5 17 16.5 16 15.3 14.7 14 13.2 12 11.2 10
KDN 50-125/125 19.8 19.4 19 18.5 17.9 17.4 16.6 16 15.1 14 13 11.8
KDN 50-125/130 21.5 21.1 20.8 20.5 19.8 19.2 18.5 17.8 17 16.5 15.2 14
KDN 50-125/135 23.2 23 22.6 22.3 21.8 21.2 20.6 19.9 19.3 18.4 17.5 16.3 13.7 NORMALIZZATE E VERTICALI
KDN 50-125/139 24.7 24.5 24.3 24 23.5 23 22.4 21.6 20.8 20 19.2 18 15.5 MONOBLOCCO MONOBLOCCO
KDN 50-125/144 25.9 26.5 26.4 26.1 25.6 25.1 24.5 24 23.2 22.3 21.5 20.5 17.8 15
KDN 50-160/137 24.2 23.8 23.7 23.5 22.5 22 21 20.3 19 18 16.8 15
KDN 50-160/145 27.2 27 26.9 26.6 26.4 25.5 25 23.8 23 21.5 20.5 19
KDN 50-160/153 30.3 30.3 30.2 30 29.9 29.5 28.5 27.7 26.5 25.5 24.5 23
KDN 50-160/161 33.8 33.7 33.7 33.6 33.6 33.3 32.5 31.8 31 29.8 28.5 27.5 DRENAGGIO DRENAGGIO E FOGNATURA
KDN 50-160/169 37.7 37.7 37.5 37.5 37.4 37 36.2 35.7 35.5 34.2 33 31.5 29
KDN 50-160/177 41.6 41.5 41.5 41.3 41.2 41 40.6 40.5 39.5 38.8 38 36.7 33.5
KDN 50-200/170 37.9 37 36.8 36.4 35 34 32 30 27 25
KDN 50-200/180 42.5 42 41.7 41.4 40.5 39.5 38 36 34 32 29
KDN 50-200/190 47.2 46.8 46.6 46 45.7 44.5 43.5 42 40 38 35.5 33 SOTTOSUOLO E IRRIGAZIONE
KDN 50-200/200 52.4 52.2 52 18 51.5 50.5 49 47.5 46 44.5 42 40 PRELIEVO DAL PRELIEVO DAL
KDN 50-200/210 58.4 58.4 58.2 58 57.5 56.5 55.5 54 52.5 51 49 46.5 41.5
KDN 50-200/219 64 64 64 64 63.5 62.5 61.5 60 58.5 57 55 53 48.5
KDN 50-250/220 63.7 63.3 63.1 63 62 61 59 57.5 55 53 50 46.5 36
KDN 50-250/230 69.6 69.3 69 68.8 68.5 68 66 64 62 60 57 54 45 POMPE PER PISCINE POMPE PER PISCINE
KDN 50-250/240 76 75.8 75.5 75.3 75 74.5 73 71.5 69 67 65 62 55
KDN 50-250/250 83.2 83 82.9 82.8 83.5 82 80.5 78.5 77 75 72.5 70 64
KDN 50-250/263 92.1 92 91.8 91.6 91.5 91.3 89.9 88.5 86.5 84.5 82.5 80 75 61
