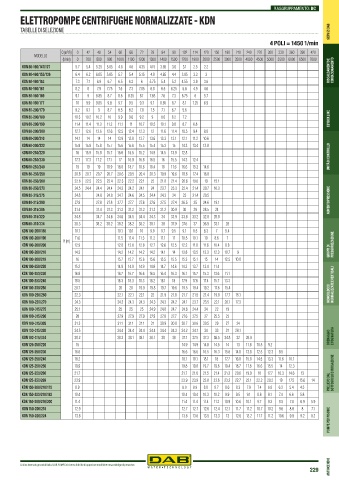

Page 231 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: BC
ELETTROPOMPE CENTRIFUGHE NORMALIZZATE - KDN

TABELLE DI SELEZIONE SERVIZI DAB

4 POLI = 1450 1/min
Q (m /c) 0 42 48 54 60 66 72 78 84 90 102 114 120 150 180 210 240 270 300 330 360 390 420
3
MODELLO
(l/min) 0 700 800 900 1000 1100 1200 1300 1400 1500 1700 1900 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
KDN 80-160/147/127 5.7 5.4 5.25 5.05 4.8 4.6 4.35 4.15 3.85 3.6 3.1 2.5 2.2 RISCALDAMENTO E CONDIZIONAMENTO
KDN 80-160/153/136 6.4 6.2 6.05 5.85 5.7 5.4 5.15 4.8 4.65 4.4 3.85 3.3 3 RISCALDAMENTO E
KDN 80-160/153 7.3 7.1 6.9 6.7 6.5 6.3 6 5.75 5.4 5.2 4.55 3.9 3.6
KDN 80-160/161 8.2 8 7.9 7.75 7.5 7.3 7.05 6.8 6.5 6.25 5.6 4.9 4.6
KDN 80-160/169 9.1 9 8.85 8.7 8.6 8.35 8.1 7.85 7.6 7.3 6.75 6 5.7
KDN 80-160/177 10 9.9 9.85 9.8 9.7 9.5 9.3 9.1 8.85 8.7 8.1 7.25 6.9
KDN 80-200/170 9.2 9.1 9 8.7 8.5 8.2 7.8 7.5 7.1 6.7 5.6
KDN 80-200/180 10.3 10.2 10.2 10 9.9 9.6 9.2 9 8.6 8.2 7.2 ESYBOX LINE ESYBOX LINE
KDN 80-200/190 11.4 11.4 11.3 11.2 11.1 11 10.7 10.5 10.1 9.8 8.7 6.8
KDN 80-200/200 12.7 12.6 12.6 12.6 12.5 12.4 12.3 12 11.6 11.4 10.5 9.4 8.8
KDN 80-200/210 14.1 14 14 14 13.9 13.8 13.7 13.6 13.3 13.1 12.1 11.2 10.6
KDN 80-200/222 15.9 15.9 15.8 15.7 15.6 15.6 15.5 15.4 15.3 15 14.3 13.4 12.8
KDN 80-250/220 16 15.9 15.8 15.7 15.6 15.5 15.2 14.9 14.5 13.9 12.8
KDN 80-250/230 17.3 17.3 17.2 17.1 17 16.9 16.8 16.5 16 15.5 14.3 12.4 UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
KDN 80-250/240 19 19 19 18.9 18.8 18.7 18.6 18.4 18 17.6 16.6 15.3 14.6
KDN 80-250/250 20.8 20.7 20.7 20.7 20.6 20.5 20.4 20.3 19.9 19.6 18.6 17.4 16.8
KDN 80-250/260 22.6 22.5 22.5 22.4 22.3 22.2 22.1 22 21.8 21.4 20.6 19.6 19 15.1
KDN 80-250/270 24.5 24.4 24.4 24.4 24.3 24.2 24.1 24 23.7 23.3 22.4 21.4 20.7 16.3
KDN 80-315/275 24.8 24.8 24.8 24.7 24.6 24.5 24.4 24.3 24 23 21.4 20.5
KDN 80-315/290 27.8 27.8 27.8 27.7 27.7 27.6 27.6 27.5 27.4 26.5 25 24.6 19.1 AUMENTO PRESSIONE AUMENTO PRESSIONE
KDN 80-315/305 31.4 31.4 31.3 31.2 31.2 31.2 31.2 31.2 30.9 30 29 28.5 24
KDN 80-315/320 34.8 34.7 34.6 34.6 34.5 34.4 34.3 34 33.9 33.8 33.2 32.8 28.8
KDN 80-315/334 38.3 38.2 38.2 38.2 38.2 38.2 38.1 38 37.9 37.6 37 36.9 33.1 28
KDN 100-200/180 10.1 10.1 10.1 10 9.9 9.7 9.5 9.1 8.5 8.3 7 5.4
KDN 100-200/190 11.6 11.5 11.4 11.3 11.2 11.1 11 10.5 10.1 10 8.6 7
H (m)
KDN 100-200/200 12.9 12.8 12.8 12.8 12.7 12.6 12.5 12.2 11.8 11.6 10.4 8.8 PRESSURIZZAZIONE
KDN 100-200/210 14.3 14.2 14.2 14.2 14.2 14.1 14 13.8 13.5 13.3 12.3 10.7 9 GRUPPI DI GRUPPI DI
KDN 100-200/219 16 15.7 15.7 15.6 15.6 15.5 15.5 15.3 15.1 15 14 12.5 10.8
KDN 100-250/220 15.2 14.9 14.9 14.9 14.8 14.7 14.6 14.3 13.7 13.4 11.4
KDN 100-250/230 16.9 16.7 16.7 16.6 16.5 16.4 16.3 16.1 15.7 15.3 13.6 11.1
KDN 100-250/240 18.5 18.3 18.3 18.3 18.2 18.1 18 17.9 17.6 17.4 15.7 13.3
KDN 100-250/250 20.1 20 20 19.9 19.8 19.7 19.6 19.5 19.4 19.2 17.6 15.4 NORMALIZZATE E VERTICALI
KDN 100-250/260 22.3 22.1 22.1 22.1 22 21.9 21.8 21.7 21.5 21.4 19.8 17.7 15.1 MONOBLOCCO MONOBLOCCO
KDN 100-250/270 24.3 24.3 24.3 24.3 24.3 24.3 24.2 24.1 23.7 23.5 22.1 20.1 17.3
KDN 100-315/275 25.1 25 25 25 24.9 24.8 24.7 24.6 24.4 24 22 19
KDN 100-315/290 28 27.9 27.9 27.9 27.9 27.8 27.7 27.6 27.5 27 25.5 23
KDN 100-315/305 31.3 31.1 31.1 31.1 31 30.9 30.8 30.7 30.6 30.5 29 27 24
KDN 100-315/320 34.5 34.4 34.4 34.4 34.4 34.4 34.3 34.2 34.1 34 33 31 28.1
KDN 100-315/334 38.2 38.2 38.1 38.1 38.1 38 38 37.7 37.5 37.3 36.5 34.8 32 28.8 DRENAGGIO DRENAGGIO E FOGNATURA
KDN 125-250/220 15 14.9 14.9 14.8 14.5 14 13 11.8 10.5 9.2
KDN 125-250/230 16.6 16.6 16.6 16.5 16.3 15.6 14.8 13.8 12.5 12.3 9.5
KDN 125-250/240 18.2 18.1 18.1 18.1 18 17.7 16.8 15.8 14.5 13.3 11.6 10.1
KDN 125-250/250 19.9 19.8 19.8 19.7 19.6 19.4 18.7 17.8 16.6 15.5 14 12.3
KDN 125-250/260 21.7 21.7 21.6 21.5 21.4 21.3 20.6 19.9 18 17.7 16.3 14.6 13 SOTTOSUOLO E IRRIGAZIONE
KDN 125-250/269 23.9 23.9 23.9 23.8 23.6 23.2 22.7 22.1 22.2 20.2 19 17.5 15.6 14 PRELIEVO DAL PRELIEVO DAL
KDN 150-200/210/170 8.9 8.9 8.9 8.8 8.7 8.6 8.3 7.9 7.4 6.8 6.2 5.4 4.5
KDN 150-200/218/182 10.4 10.4 10.4 10.3 10.2 9.9 9.5 9.1 8.6 8.1 7.4 6.6 5.8
KDN 150-200/218/200 11.4 11.4 11.4 11.4 11.2 10.9 10.6 10.1 9.7 9.2 8.5 7.8 6.9 5.9
KDN 150-200/218 12.9 12.7 12.7 12.6 12.4 12.1 11.7 11.2 10.7 10.2 9.6 8.8 8 7.1
POMPE PER PISCINE POMPE PER PISCINE
KDN 150-200/224 13.8 13.6 13.6 13.5 13.3 13 12.6 12.2 11.7 11.2 10.6 9.9 9.2 8.2
