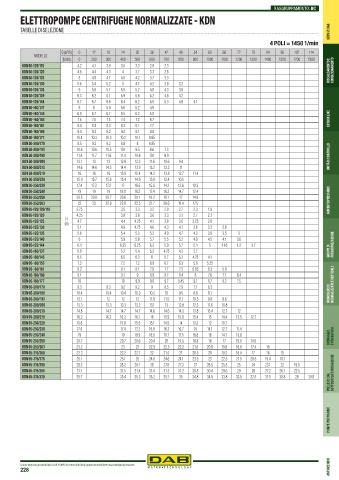

Page 230 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: BC
ELETTROPOMPE CENTRIFUGHE NORMALIZZATE - KDN

TABELLE DI SELEZIONE SERVIZI DAB

4 POLI = 1450 1/min
Q (m /c) 0 12 18 24 30 36 42 48 54 60 66 72 78 84 90 102 114
3
MODELLO
(l/min) 0 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1700 1900
KDN 50-125/115 4.2 4.1 3.9 3.6 3.3 2.9 2.3
KDN 50-125/120 4.6 4.4 4.3 4 3.7 3.3 2.8 RISCALDAMENTO E RISCALDAMENTO E CONDIZIONAMENTO
KDN 50-125/125 5 4.9 4.7 4.5 4.2 3.7 3.3
KDN 50-125/130 5.6 5.4 5.2 5 4.7 4.2 3.8 3.2
KDN 50-125/135 6 5.8 5.7 5.5 5.2 4.8 4.3 3.8
KDN 50-125/139 6.3 6.2 6.1 5.9 5.6 5.2 4.8 4.2
KDN 50-125/144 6.7 6.7 6.6 6.4 6.2 5.8 5.3 4.8 4.1
KDN 50-160/137 6 6 5.9 5.6 5.2 4.8
KDN 50-160/145 6.8 6.7 6.7 6.5 6.2 5.8
KDN 50-160/153 7.6 7.6 7.5 7.4 7.2 6.7 ESYBOX LINE ESYBOX LINE
KDN 50-160/161 8.4 8.4 8.3 8.2 8.1 7.7
KDN 50-160/169 9.4 9.3 9.2 9.2 9.1 8.8
KDN 50-160/177 10.4 10.3 10.3 10.2 10.1 9.95
KDN 50-200/170 9.5 9.3 9.2 8.8 8 6.85
KDN 50-200/180 10.6 10.6 10.5 10.1 9.5 8.6 7.3
KDN 50-200/190 11.8 11.7 11.6 11.4 10.8 10.1 8.9 UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
KDN 50-200/200 13.1 13 13 12.8 12.3 11.6 10.6 9.4
KDN 50-200/210 14.6 14.6 14.5 14.4 13.9 13.2 12.2 11
KDN 50-200/219 16 16 16 15.9 15.4 14.2 13.8 12.7 11.4
KDN 50-250/220 15.9 15.7 15.6 15.4 14.9 13.8 12.4 10.5
KDN 50-250/230 17.4 17.3 17.2 17 16.5 15.5 14.2 12.6 10.3
KDN 50-250/240 19 19 19 18.8 18.2 17.4 16.2 14.7 12.4
KDN 50-250/250 20.8 20.8 20.7 20.6 20.1 19.2 18.1 17 14.8
KDN 50-250/263 23 23 22.9 22.8 22.5 21.7 20.6 19.4 17.5 AUMENTO PRESSIONE AUMENTO PRESSIONE
KDN 65-125/120/110 3.75 3.5 3.3 3.2 2.9 2.7 2.3 1.9
KDN 65-125/120 4.25 3.9 3.8 3.6 3.3 3.1 2.7 2.3
KDN 65-125/125 (m) H 4.7 4.4 4.25 4.1 3.8 3.6 3.25 2.8
KDN 65-125/130 5.1 4.9 4.75 4.6 4.3 4.1 3.8 3.3 2.8
KDN 65-125/135 5.6 5.4 5.3 5.2 4.9 4.7 4.3 3.9 3.5 3
KDN 65-125/140 6 5.9 5.8 5.7 5.5 5.2 4.9 4.5 4.1 3.6
KDN 65-125/144 6.4 6.35 6.25 6.2 5.9 5.7 5.4 5 4.65 4.2 3.7 PRESSURIZZAZIONE
KDN 65-160/137 5.8 5.7 5.4 5.2 4.75 4.3 3.7 GRUPPI DI GRUPPI DI
KDN 65-160/145 6.5 6.5 6.3 6 5.7 5.3 4.75 4.1
KDN 65-160/153 7.3 7.2 7.2 6.9 6.7 6.3 5.8 5.25
KDN 65-160/161 8.2 8.1 8.1 7.9 7.7 7.3 6.85 6.3 5.8
KDN 65-160/169 9.1 9.1 9 8.9 8.7 8.4 8 7.6 7.1 6.4
KDN 65-160/177 10 10 9.9 9.8 9.7 9.45 9.1 8.7 8.2 7.5
KDN 65-200/170 9.3 9.3 9.2 9.2 9 8.5 7.9 7.1 6.3 NORMALIZZATE E VERTICALI
KDN 65-200/180 10.4 10.4 10.4 10.3 10.2 10 9.5 8.8 8.1 MONOBLOCCO MONOBLOCCO
KDN 65-200/190 12.1 12 12 12 11.9 11.5 11.1 10.5 9.8 8.8
KDN 65-200/200 13.3 13.3 13.3 13.2 13.1 13 12.8 12.3 11.6 10.8
KDN 65-200/210 14.8 14.7 14.7 14.7 14.6 14.6 14.3 13.8 13.4 12.7 12
KDN 65-200/219 16.2 16.2 16.2 16.1 16 15.9 15.8 15.4 15 14.4 13.5 12.7
KDN 65-250/220 15.8 15.8 15.5 15.1 14.5 14 13.2 12 10.7
KDN 65-250/230 17.4 17.4 17.2 16.8 16.3 15.7 15 14.1 12.7 11.4
KDN 65-250/240 19 19 18.9 18.5 18.1 17.5 16.8 16 14.7 13.6 DRENAGGIO E FOGNATURA
KDN 65-250/250 20.7 20.7 20.6 20.4 20 19.5 18.8 18 17 15.9 14.5 DRENAGGIO
KDN 65-250/263 23.2 23 23 22.9 22.5 22.2 21.6 20.8 19.8 18.6 17.4 16
KDN 65-315/260 22.3 22.2 22.1 22 21.5 21 20.5 20 19.2 18.4 17 16 15
KDN 65-315/275 25.1 25.1 25 24.8 24.6 24.1 23.5 23 22.5 21.5 20.5 19.4 18.1
KDN 65-315/290 28.2 28.2 28.1 28 27.8 27.3 27 26.5 25.5 25 24 23.1 22 19.5
KDN 65-315/305 31.7 31.5 31.4 31.4 31.3 31.2 30.8 30.4 29.6 29 28 27.2 26.1 23.5 SOTTOSUOLO E IRRIGAZIONE
PRELIEVO DAL PRELIEVO DAL
KDN 65-315/320 35.7 35.4 35.3 35.2 35.1 35 34.8 34.5 33.8 33.5 32.5 31.5 30.8 28 24.8
