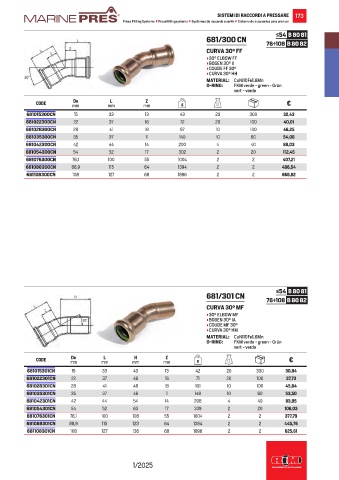

Page 175 - RACCORDERIEMETALLICHE - LISTINO 2025 - FIDRA

SISTEMI DI RACCORDI A PRESSARE 173
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

≤54 B 80 81
681/300 CN
76÷108 B 80 82
CURVA 30° FF
• 30° ELBOW FF
• BOGEN 30° II
• COUDE FF 30°
• CURVA 30° HH
MATERIAL: CuNi10Fe1.6Mn
O-RING: FKM verde - green - Grün
vert - verde

De
L
Z
CODE mm mm mm g €
681015300CN 15 33 13 43 20 300 32,43
681022300CN 22 37 16 72 20 100 40,01
681028300CN 28 41 18 97 10 100 46,25
681035300CN 35 37 11 140 10 60 54,06
681042300CN 42 44 14 200 4 40 88,03
681054300CN 54 52 17 302 2 20 112,45
681076300CN 76,1 100 55 1004 2 2 407,21
681088300CN 88,9 115 64 1394 2 2 486,54
681108300CN 108 127 68 1896 2 2 668,82

≤54 B 80 81
681/301 CN
76÷108 B 80 82
CURVA 30° MF
• 30° ELBOW MF
• BOGEN 30° IA
• COUDE MF 30°
• CURVA 30° HM
MATERIAL: CuNi10Fe1.6Mn
O-RING: FKM verde - green - Grün
vert - verde

De
Z
H
L
CODE mm mm mm mm g €
681015301CN 15 33 43 13 42 20 300 30,94
681022301CN 22 37 46 16 71 20 100 37,73
681028301CN 28 41 48 18 101 10 100 45,84
681035301CN 35 37 46 11 148 10 60 53,50
681042301CN 42 44 54 14 208 4 40 83,95
681054301CN 54 52 63 17 339 2 20 106,03
681076301CN 76,1 100 108 55 1004 2 2 377,79
681088301CN 88,9 115 123 64 1394 2 2 445,76
681108301CN 108 127 136 68 1896 2 2 625,61

1/2025
