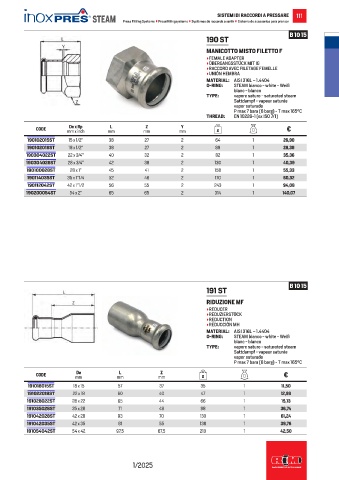

SISTEMI DI RACCORDI A PRESSARE 111
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 10 15
190 ST
MANICOTTO MISTO FILETTO F
• FEMALE ADAPTER
• ÜBERGANGSSTÜCK MIT IG
• RACCORD AVEC FILETAGE FEMELLE
• UNIÓN HEMBRA
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
THREAD: EN 10226-1 (ex ISO 7/1)
Y
Z
L
De x Rp
CODE mm x inch mm mm mm g €
190102015ST 15 x 1/2” 38 27 2 64 1 26,90
190102018ST 18 x 1/2” 38 27 2 89 1 28,38
190304022ST 22 x 3/4” 40 32 2 82 1 35,36
190304028ST 28 x 3/4” 42 38 2 130 1 40,39
190100028ST 28 x 1” 45 41 2 158 1 55,33
190114035ST 35 x 1”1/4 52 46 2 170 1 60,32
190112042ST 42 x 1”1/2 56 55 2 243 1 94,08
190200054ST 54 x 2” 65 65 2 314 1 140,07

B 10 15
191 ST
RIDUZIONE MF
• REDUCER
• REDUZIERSTÜCK
• REDUCTION
• REDUCCIÓN MH
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
Z
De
L
CODE mm mm mm g €
191018015ST 18 x 15 57 37 35 1 11,50
191022018ST 22 x 18 60 40 47 1 12,98
191028022ST 28 x 22 65 44 66 1 15,13
191035028ST 35 x 28 71 48 98 1 36,74
191042028ST 42 x 28 93 70 130 1 61,24
191042035ST 42 x 35 81 55 138 1 39,76
191054042ST 54 x 42 97,5 67,5 210 1 42,50

1/2025
