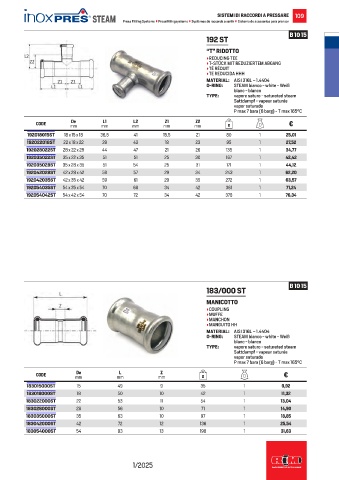

SISTEMI DI RACCORDI A PRESSARE 109
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 10 15
192 ST
“T” RIDOTTO
• REDUCING TEE
• T-STÜCK MIT REDUZIERTEM ABGANG
• TÉ RÉDUIT
• TE REDUCIDA HHH
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
L1
Z2
Z1
L2
De
CODE mm mm mm mm mm g €
192018015ST 18 x 15 x 18 36,5 41 15,5 21 80 1 25,01
192022018ST 22 x 18 x 22 39 43 18 23 95 1 27,52
192028022ST 28 x 22 x 28 44 47 21 26 135 1 34,77
192035022ST 35 x 22 x 35 51 51 25 30 167 1 42,42
192035028ST 35 x 28 x 35 51 54 25 31 171 1 44,12
192042028ST 42 x 28 x 42 59 57 29 34 243 1 62,20
192042035ST 42 x 35 x 42 59 61 29 35 272 1 63,57
192054035ST 54 x 35 x 54 70 68 34 42 361 1 71,24
192054042ST 54 x 42 x 54 70 72 34 42 376 1 76,34

B 10 15
183/000 ST
MANICOTTO
• COUPLING
• MUFFE
• MANCHON
• MANGUITO HH
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
L
De
Z
CODE mm mm mm g €
183015000ST 15 49 9 35 1 9,92
183018000ST 18 50 10 42 1 11,32
183022000ST 22 53 11 54 1 13,04
183028000ST 28 56 10 71 1 14,90
183035000ST 35 63 10 97 1 18,85
183042000ST 42 72 12 136 1 25,54
183054000ST 54 83 13 198 1 31,63

1/2025
