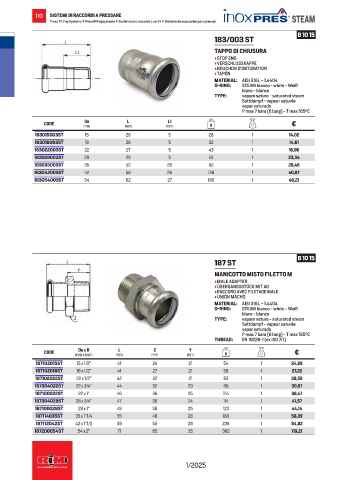

110 SISTEMI DI RACCORDI A PRESSARE
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 10 15
183/003 ST
TAPPO DI CHIUSURA
• STOP END
• VERSCHLUSSKAPPE
• BOUCHON D’OBTURATION
• TAPÓN
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
De
L
L1
CODE mm mm mm g €
183015003ST 15 26 5 26 1 14,02
183018003ST 18 26 5 32 1 14,61
183022003ST 22 27 5 43 1 16,96
183028003ST 28 29 5 61 1 23,34
183035003ST 35 52 26 95 1 28,46
183042003ST 42 56 26 126 1 40,87
183054003ST 54 62 27 185 1 48,21

B 10 15
187 ST
MANICOTTO MISTO FILETTO M
• MALE ADAPTER
• ÜBERGANGSSTÜCK MIT AG
• RACCORD AVEC FILETAGE MALE
• UNIÓN MACHO
MATERIAL: AISI 316L – 1.4404
O-RING: STEAM bianco - white - Weiß
blanc - blanco
TYPE: vapore saturo - saturated steam
Sattdampf - vapeur saturée
vapor saturado
P max 7 bara (6 barg) - T max 165°C
THREAD: EN 10226-1 (ex ISO 7/1)
L
De x R
Z
Y
CODE mm x inch mm mm mm g €
187102015ST 15 x 1/2” 41 24 21 54 1 24,99
187102018ST 18 x 1/2” 41 27 21 58 1 27,22
187102022ST 22 x 1/2” 42 32 21 83 1 29,59
187304022ST 22 x 3/4” 44 32 23 89 1 30,67
187100022ST 22 x 1” 46 36 25 154 1 36,47
187304028ST 28 x 3/4” 47 38 24 114 1 41,57
187100028ST 28 x 1” 48 38 25 123 1 44,14
187114035ST 35 x 1”1/4 55 46 28 180 1 58,39
187112042ST 42 x 1”1/2 59 55 28 236 1 84,82
187200054ST 54 x 2” 71 65 35 362 1 119,21
