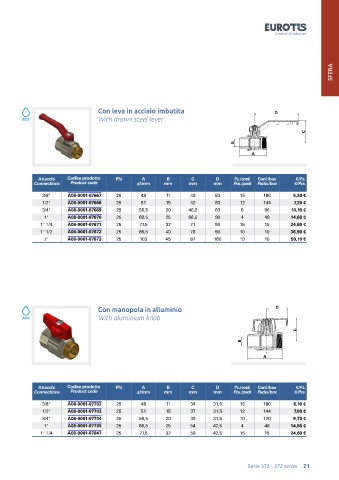

Page 21 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

SFERA

Con leva in acciaio imbutita D D

ACS With drawn steel lever

C C
B B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
3/8" A08-0001-07667 25 48 11 40 83 15 180 6,30 €
1/2" A08-0001-07668 25 51 15 42 83 12 144 7,20 €
3/4" A08-0001-07669 25 56,5 20 46,5 83 8 96 10,10 €
1" A08-0001-07670 25 68,5 25 66,5 90 4 48 14,60 €
1" 1/4 A08-0001-07671 25 77,5 32 71 90 15 15 24,60 €
1" 1/2 A08-0001-07672 25 86,5 40 78 90 10 10 36,90 €
2" A08-0001-07673 25 103 45 87 160 10 10 59,10 €

Con manopola in alluminio D D
ACS With aluminium knob

C C
B B

A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.

3/8" A08-0001-07702 25 48 11 34 31,5 15 180 6,10 €
1/2" A08-0001-07703 25 51 15 37 31,5 12 144 7,00 €
3/4" A08-0001-07704 25 56,5 20 39 31,5 10 120 9,70 €
1" A08-0001-07705 25 68,5 25 54 42,5 4 48 14,80 €
1" 1/4 A08-0001-07847 25 77,5 32 59 42,5 15 15 24,60 €

Serie 372 - 372 series 21
