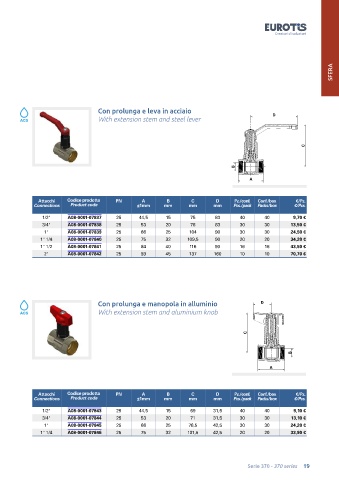

Page 19 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

SFERA

Con prolunga e leva in acciaio D D

ACS With extension stem and steel lever

C C

B A

B A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/2" A08-0001-07837 25 44,5 15 75 83 40 40 9,70 €
3/4" A08-0001-07838 25 53 20 78 83 30 30 13,50 €
1" A08-0001-07839 25 66 25 104 90 30 30 24,50 €
1" 1/4 A08-0001-07840 25 75 32 109,5 90 20 20 34,20 €
1" 1/2 A08-0001-07841 25 84 40 116 90 16 16 43,50 €
2" A08-0001-07842 25 93 45 137 160 10 10 70,70 €

Con prolunga e manopola in alluminio D D
ACS With extension stem and aluminium knob

C C

B B

A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/2" A08-0001-07843 25 44,5 15 69 31,5 40 40 9,10 €
3/4" A08-0001-07844 25 53 20 71 31,5 30 30 13,10 €
1" A08-0001-07845 25 66 25 76,5 42,5 30 30 24,20 €
1" 1/4 A08-0001-07846 25 75 32 101,5 42,5 20 20 33,90 €

Serie 370 - 370 series 19
