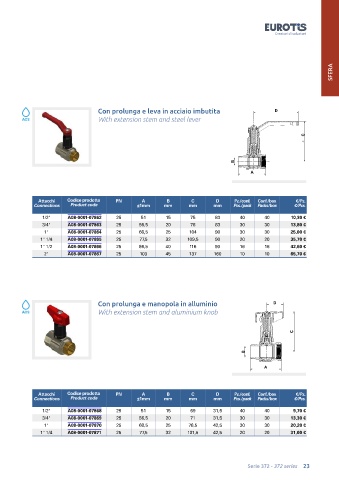

Page 23 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

SFERA

Con prolunga e leva in acciaio imbutita D D

ACS With extension stem and steel lever

C
C

B B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/2" A08-0001-07862 25 51 15 75 83 40 40 10,30 €
3/4" A08-0001-07863 25 56,5 20 78 83 30 30 13,80 €
1" A08-0001-07864 25 68,5 25 104 90 30 30 25,00 €
1" 1/4 A08-0001-07865 25 77,5 32 109,5 90 20 20 35,70 €
1" 1/2 A08-0001-07866 25 86,5 40 116 90 16 16 42,60 €
2" A08-0001-07867 25 103 45 137 160 10 10 65,70 €

Con prolunga e manopola in alluminio D D
ACS With extension stem and aluminium knob

C C

B B

A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/2" A08-0001-07868 25 51 15 69 31,5 40 40 9,70 €
3/4" A08-0001-07869 25 56,5 20 71 31,5 30 30 13,30 €
1" A08-0001-07870 25 68,5 25 76,5 42,5 30 30 20,20 €
1" 1/4 A08-0001-07871 25 77,5 32 101,5 42,5 20 20 31,00 €

Serie 372 - 372 series 23
