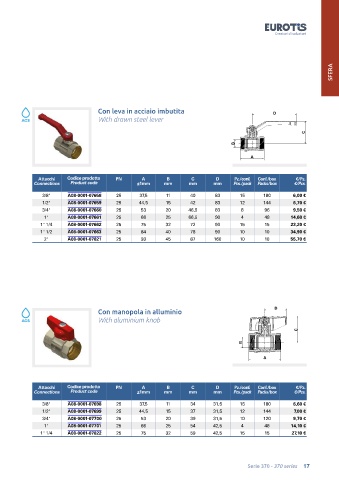

Page 17 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

SFERA

Con leva in acciaio imbutita D D D

ACS With drawn steel lever

C C C
B B B

A A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
3/8" A08-0001-07658 25 37,5 11 40 83 15 180 6,00 €
1/2" A08-0001-07659 25 44,5 15 42 83 12 144 6,70 €
3/4" A08-0001-07660 25 53 20 46,5 83 8 96 9,50 €
1" A08-0001-07661 25 66 25 66,5 90 4 48 14,60 €
1" 1/4 A08-0001-07662 25 75 32 72 90 15 15 23,20 €
1" 1/2 A08-0001-07663 25 84 40 78 90 10 10 34,90 €
2" A08-0001-07821 25 93 45 87 160 10 10 55,70 €

Con manopola in alluminio D D

ACS With aluminium knob
C C

B B

A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.

3/8" A08-0001-07698 25 37,5 11 34 31,5 15 180 6,60 €
1/2" A08-0001-07699 25 44,5 15 37 31,5 12 144 7,00 €
3/4" A08-0001-07700 25 53 20 39 31,5 10 120 9,70 €
1" A08-0001-07701 25 66 25 54 42,5 4 48 14,10 €
1" 1/4 A08-0001-07822 25 75 32 59 42,5 15 15 27,10 €

Serie 370 - 370 series 17
