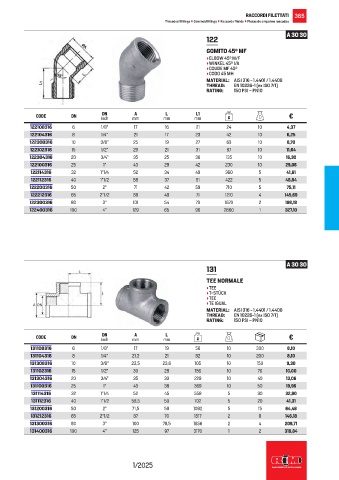

Page 367 - RACCORDERIEMETALLICHE - LISTINO 2025

RACCORDI FILETTATI 365
Threaded fittings • Gewindefittings • Raccords filetés • Piezas de empalme roscadas

A 30 30
122
GOMITO 45° MF
• ELBOW 45° M/F
• WINKEL 45° I/A
• COUDE MF 45°
• CODO 45 MH
MATERIAL: AISI 316 - 1.4401 / 1.4408
THREAD: EN 10226-1 (ex ISO 7/1)
RATING: 150 PSI – PN10

DN
L
A
L1
CODE DN inch mm mm mm g €
122108316 6 1/8” 17 16 21 24 10 4,37
122104316 8 1/4” 21 17 23 42 10 6,25
122308316 10 3/8” 25 19 27 63 10 8,70
122102316 15 1/2” 29 21 31 87 10 11,64
122304316 20 3/4” 35 25 36 135 10 16,30
122100316 25 1” 43 29 42 230 10 29,06
122114316 32 1”1/4 52 34 49 360 5 41,61
122112316 40 1”1/2 58 37 51 422 5 48,84
122200316 50 2” 71 42 59 710 5 75,11
122212316 65 2”1/2 88 49 71 1210 4 145,69
122300316 80 3” 101 54 79 1670 2 198,18
122400316 100 4” 129 65 96 2860 1 327,10

A 30 30
131

TEE NORMALE
• TEE
• T-STÜCK
• TEE
• TE IGUAL
MATERIAL: AISI 316 - 1.4401 / 1.4408
THREAD: EN 10226-1 (ex ISO 7/1)
RATING: 150 PSI – PN10

DN
A
L
CODE DN inch mm mm g €
131108316 6 1/8” 17 19 56 10 300 8,10
131104316 8 1/4” 21,3 21 82 10 200 8,10
131308316 10 3/8” 23,5 23,6 105 10 150 9,30
131102316 15 1/2” 30 28 156 10 70 10,00
131304316 20 3/4” 35 33 229 10 40 13,06
131100316 25 1” 43 38 369 10 50 19,96
131114316 32 1”1/4 52 45 558 5 30 32,80
131112316 40 1”1/2 58,5 50 702 5 20 41,31
131200316 50 2” 71,5 58 1082 5 15 64,48
131212316 65 2”1/2 87 70 1517 2 8 146,18
131300316 80 3” 100 78,5 1856 2 4 209,71
131400316 100 4” 125 97 3170 1 2 319,84

1/2025
