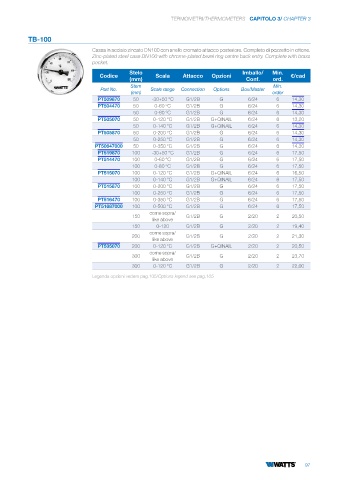

Page 99 - WATTS - LISTINO FIMET 2024 REV1

TERMOMETRI/THERMOMETERS CAPITOLO 3/ CHAPTER 3

TB-100
Cassa in acciaio zincato DN100 con anello cromato attacco posteriore. Completo di pozzetto in ottone.
Zinc-plated steel case DN100 with chrome-plated bezel ring centre back entry. Complete with brass
pocket.
Stelo Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
(mm) Conf. ord.
Stem Min.
Part No. Scale range Connection Options Box/Master
(mm) order
PT509870 50 -30+50 °C G1/2B G 6/24 6 14,30
PT504470 50 0-60 °C G1/2B G 6/24 6 14,30
50 0-80 °C G1/2B G 6/24 6 14,30
PT505070 50 0-120 °C G1/2B G+QINAIL 6/24 6 13,20
50 0-140 °C G1/2B G+QINAIL 6/24 6 14,30
PT505870 50 0-200 °C G1/2B G 6/24 6 14,30
50 0-250 °C G1/2B G 6/24 6 14,30
PT50647000 50 0-350 °C G1/2B G 6/24 6 14,30
PT519870 100 -30+50 °C G1/2B G 6/24 6 17,50
PT514470 100 0-60 °C G1/2B G 6/24 6 17,50
100 0-80 °C G1/2B G 6/24 6 17,50
PT515070 100 0-120 °C G1/2B G+QINAIL 6/24 6 16,50
100 0-140 °C G1/2B G+QINAIL 6/24 6 17,50
PT515870 100 0-200 °C G1/2B G 6/24 6 17,50
100 0-250 °C G1/2B G 6/24 6 17,50
PT516470 100 0-350 °C G1/2B G 6/24 6 17,50
PT51687000 100 0-500 °C G1/2B G 6/24 6 17,50
come sopra/
150 G1/2B G 2/20 2 20,50
like above
150 0-120 G1/2B G 2/20 2 19,40
come sopra/
200 G1/2B G 2/20 2 21,30
like above
PT535070 200 0-120 °C G1/2B G+QINAIL 2/20 2 20,50
come sopra/
300 G1/2B G 2/20 2 23,70
like above
300 0-120 °C G1/2B G 2/20 2 22,00
Legenda opzioni vedere pag.105/Options legend see pag.105

97
