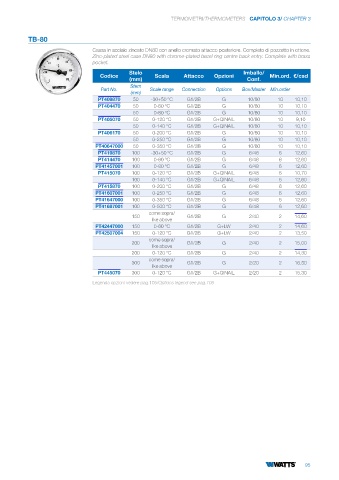

Page 97 - WATTS - LISTINO FIMET 2024 REV1

TERMOMETRI/THERMOMETERS CAPITOLO 3/ CHAPTER 3

TB-80
Cassa in acciaio zincato DN80 con anello cromato attacco posteriore. Completo di pozzetto in ottone.
Zinc-plated steel case DN80 with chrome-plated bezel ring centre back entry. Complete with brass
pocket.
Stelo Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
(mm) Conf.
Stem
Part No. Scale range Connection Options Box/Master Min.order
(mm)
PT409870 50 -30+50 °C G1/2B G 10/80 10 10,10
PT404470 50 0-60 °C G1/2B G 10/80 10 10,10
50 0-80 °C G1/2B G 10/80 10 10,10
PT405070 50 0-120 °C G1/2B G+QINAIL 10/80 10 9,10
50 0-140 °C G1/2B G+QINAIL 10/80 10 10,10
PT406170 50 0-200 °C G1/2B G 10/80 10 10,10
50 0-250 °C G1/2B G 10/80 10 10,10
PT40647000 50 0-350 °C G1/2B G 10/80 10 10,10
PT419870 100 -30+50 °C G1/2B G 6/48 6 12,60
PT414470 100 0-60 °C G1/2B G 6/48 6 12,60
PT41457001 100 0-80 °C G1/2B G 6/48 6 12,60
PT415070 100 0-120 °C G1/2B G+QINAIL 6/48 6 10,70
100 0-140 °C G1/2B G+QINAIL 6/48 6 12,60
PT415870 100 0-200 °C G1/2B G 6/48 6 12,60
PT41607001 100 0-250 °C G1/2B G 6/48 6 12,60
PT41647000 100 0-350 °C G1/2B G 6/48 6 12,60
PT41687001 100 0-500 °C G1/2B G 6/48 6 12,60
come sopra/
150 G1/2B G 2/40 2 14,60
like above
PT42447000 150 0-60 °C G1/2B G+LW 2/40 2 14,60
PT42507004 150 0-120 °C G1/2B G+LW 2/40 2 13,50
come sopra/
200 G1/2B G 2/40 2 15,00
like above
200 0-120 °C G1/2B G 2/40 2 14,30
come sopra/
300 G1/2B G 2/20 2 16,50
like above
PT445070 300 0-120 °C G1/2B G+QINAIL 2/20 2 15,30
Legenda opzioni vedere pag.105/Options legend see pag.105

95
