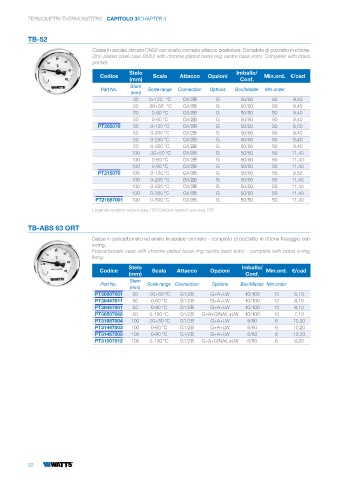

Page 94 - WATTS - LISTINO FIMET 2024 REV1

TERMOMETRI/THERMOMETERS CAPITOLO 3/CHAPTER 3

TB-52
Cassa in acciaio zincato DN52 con anello cromato attacco posteriore. Completo di pozzetto in ottone.
Zinc-plated steel case DN52 with chrome-plated bezel ring centre back entry. Complete with brass
pocket.
Stelo Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
(mm) Conf.
Stem
Part No. Scale range Connection Options Box/Master Min.order
(mm)
30 0+120 °C G1/2B G 50/50 50 9,40
50 -30+50 °C G1/2B G 50/50 50 9,40
50 0-60 °C G1/2B G 50/50 50 9,40
50 0-80 °C G1/2B G 50/50 50 9,40
PT205070 50 0-120 °C G1/2B G 50/50 50 8,00
50 0-200 °C G1/2B G 50/50 50 9,40
50 0-250 °C G1/2B G 50/50 50 9,40
50 0-350 °C G1/2B G 50/50 50 9,40
100 -30+50 °C G1/2B G 50/50 50 11,40
100 0-60 °C G1/2B G 50/50 50 11,40
100 0-80 °C G1/2B G 50/50 50 11,40
PT215070 100 0-120 °C G1/2B G 50/50 50 9,50
100 0-200 °C G1/2B G 50/50 50 11,40
100 0-250 °C G1/2B G 50/50 50 11,40
100 0-350 °C G1/2B G 50/50 50 11,40
PT21687001 100 0-500 °C G1/2B G 50/50 50 11,40
Legenda opzioni vedere pag.105/Options legend see pag.105

TB-ABS 63 ORT

Cassa in policarbonato ed anello in acciaio cromato - completo di pozzetto in ottone fissaggio con
o-ring.
Polycarbonate case with chrome-plated bezel ring centre back entry - complete with brass o-ring
fixing.
Stelo Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
(mm) Conf.
Stem
Part No. Scale range Connection Options Box/Master Min.order
(mm)
PT30987001 50 -30+50 °C G1/2B G+A+LW 10/100 10 8,10
PT30447011 50 0-60 °C G1/2B G+A+LW 10/100 10 8,10
PT30457001 50 0-80 °C G1/2B G+A+LW 10/100 10 8,10
PT30507068 50 0-120 °C G1/2B G+A+QINAIL+LW 10/100 10 7,10
PT31987004 100 -30+50 °C G1/2B G+A+LW 6/60 6 10,20
PT31447003 100 0-60 °C G1/2B G+A+LW 6/60 6 10,20
PT31457000 100 0-80 °C G1/2B G+A+LW 6/60 6 10,20
PT31507012 100 0-120 °C G1/2B G+A+QINAIL+LW 6/60 6 9,20

92
