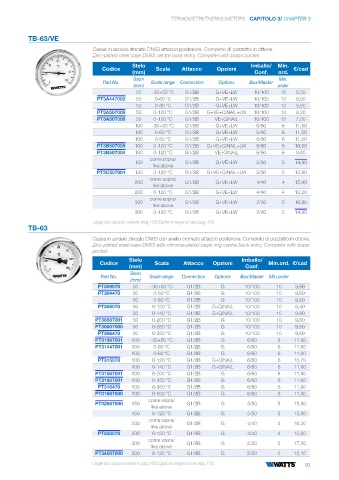

Page 95 - WATTS - LISTINO FIMET 2024 REV1

TERMOMETRI/THERMOMETERS CAPITOLO 3/ CHAPTER 3

TB-63/VE
Cassa in acciaio zincato DN63 attacco posteriore. Completo di pozzetto in ottone
Zinc-plated steel case DN63 centre back entry. Complete with brass pocket
Stelo Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
(mm) Conf. ord.
Stem Min.
Part No. Scale range Connection Options Box/Master
(mm) order
50 -30+50 °C G1/2B G+VE+LW 10/100 10 9,50
PT3A447002 50 0-60 °C G1/2B G+VE+LW 10/100 10 9,50
50 0-80 °C G1/2B G+VE+LW 10/100 10 9,50
PT3A507009 50 0-120 °C G1/2B G+VE+QINAIL+LW 10/100 10 8,30
PT3A507006 50 0-120 °C G1/2B VE+QINAIL 10/100 10 7,00
100 -30+50 °C G1/2B G+VE+LW 6/60 6 11,50
100 0-60 °C G1/2B G+VE+LW 6/60 6 11,50
100 0-80 °C G1/2B G+VE+LW 6/60 6 11,50
PT3B507005 100 0-120 °C G1/2B G+VE+QINAIL+LW 6/60 6 10,60
PT3B507004 100 0-120 °C G1/2B VE+QINAIL 6/60 6 8,40
come sopra/
150 G1/2B G+VE+LW 5/50 5 14,90
like above
PT3C507001 150 0-120 °C G1/2B G+VE+QINAIL+LW 5/50 5 12,90
come sopra/
200 G1/2B G+VE+LW 4/40 4 15,90
like above
200 0-120 °C G1/2B G+VE+LW 4/40 4 13,20
come sopra/
300 G1/2B G+VE+LW 2/20 2 16,90
like above
300 0-120 °C G1/2B G+VE+LW 2/20 2 14,90
Legenda opzioni vedere pag.105/Options legend see pag.105
TB-63

Cassa in acciaio zincato DN63 con anello cromato attacco posteriore. Completo di pozzetto in ottone.
Zinc-plated steel case DN63 with chrome-plated bezel ring centre back entry. Complete with brass
pocket.
Stelo Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
(mm) Conf.
Stem
Part No. Scale range Connection Options Box/Master Min.order
(mm)
PT309870 50 -30+50 °C G1/2B G 10/100 10 9,60
PT304470 50 0-60 °C G1/2B G 10/100 10 9,60
50 0-80 °C G1/2B G 10/100 10 9,60
PT305070 50 0-120 °C G1/2B G+QINAIL 10/100 10 8,40
50 0-140 °C G1/2B G+QINAIL 10/100 10 9,60
PT30587001 50 0-200 °C G1/2B G 10/100 10 9,60
PT30607000 50 0-250 °C G1/2B G 10/100 10 9,60
PT306470 50 0-350 °C G1/2B G 10/100 10 9,60
PT31987001 100 -30+50 °C G1/2B G 6/60 6 11,90
PT31447001 100 0-60 °C G1/2B G 6/60 6 11,90
100 0-80 °C G1/2B G 6/60 6 11,90
PT315070 100 0-120 °C G1/2B G+QINAIL 6/60 6 10,70
100 0-140 °C G1/2B G+QINAIL 6/60 6 11,90
PT31587001 100 0-200 °C G1/2B G 6/60 6 11,90
PT31607001 100 0-250 °C G1/2B G 6/60 6 11,90
PT316470 100 0-350 °C G1/2B G 6/60 6 11,90
PT31687000 100 0-500 °C G1/2B G 6/60 6 11,90
come sopra/
PT32687000 150 G1/2B G 5/50 5 15,50
like above
150 0-120 °C G1/2B G 5/50 5 13,80
come sopra/
200 G1/2B G 4/40 4 16,30
like above
PT335070 200 0-120 °C G1/2B G 4/40 4 13,80
come sopra/
300 G1/2B G 2/20 2 17,20
like above
PT34507000 300 0-120 °C G1/2B G 2/20 2 15,10
Legenda opzioni vedere pag.105/Options legend see pag.105 93
