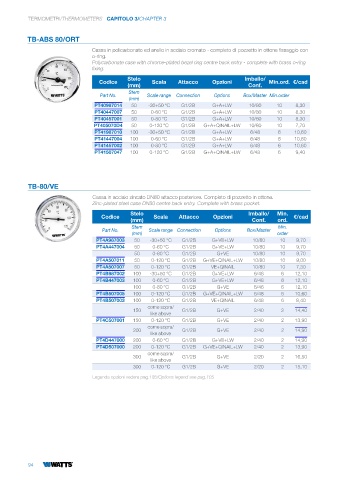

Page 96 - WATTS - LISTINO FIMET 2024 REV1

TERMOMETRI/THERMOMETERS CAPITOLO 3/CHAPTER 3

TB-ABS 80/ORT
Cassa in policarbonato ed anello in acciaio cromato - completo di pozzetto in ottone fissaggio con
o-ring.
Polycarbonate case with chrome-plated bezel ring centre back entry - complete with brass o-ring
fixing.
Stelo Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
(mm) Conf.
Stem
Part No. Scale range Connection Options Box/Master Min.order
(mm)
PT40987014 50 -30+50 °C G1/2B G+A+LW 10/80 10 8,30
PT40447007 50 0-60 °C G1/2B G+A+LW 10/80 10 8,30
PT40457001 50 0-80 °C G1/2B G+A+LW 10/80 10 8,30
PT405070D4 50 0-120 °C G1/2B G+A+QINAIL+LW 10/80 10 7,70
PT41987010 100 -30+50 °C G1/2B G+A+LW 6/48 6 10,60
PT41447004 100 0-60 °C G1/2B G+A+LW 6/48 6 10,60
PT41457002 100 0-80 °C G1/2B G+A+LW 6/48 6 10,60
PT41507047 100 0-120 °C G1/2B G+A+QINAIL+LW 6/48 6 9,40

TB-80/VE
Cassa in acciaio zincato DN80 attacco posteriore. Completo di pozzetto in ottone.
Zinc-plated steel case DN80 centre back entry. Complete with brass pocket.
Stelo Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
(mm) Conf. ord.
Stem Min.
Part No. Scale range Connection Options Box/Master
(mm) order
PT4A987003 50 -30+50 °C G1/2B G+VE+LW 10/80 10 9,70
PT4A447004 50 0-60 °C G1/2B G+VE+LW 10/80 10 9,70
50 0-80 °C G1/2B G+VE 10/80 10 9,70
PT4A507011 50 0-120 °C G1/2B G+VE+QINAIL+LW 10/80 10 9,00
PT4A507007 50 0-120 °C G1/2B VE+QINAIL 10/80 10 7,30
PT4B987002 100 -30+50 °C G1/2B G+VE+LW 6/48 6 12,10
PT4B447003 100 0-60 °C G1/2B G+VE+LW 6/48 6 12,10
100 0-80 °C G1/2B G+VE 6/48 6 12,10
PT4B507005 100 0-120 °C G1/2B G+VE+QINAIL+LW 6/48 6 10,60
PT4B507003 100 0-120 °C G1/2B VE+QINAIL 6/48 6 8,40
come sopra/
150 G1/2B G+VE 2/40 2 14,40
like above
PT4C507001 150 0-120 °C G1/2B G+VE 2/40 2 13,90
come sopra/
200 G1/2B G+VE 2/40 2 14,90
like above
PT4D447000 200 0-60 °C G1/2B G+VE+LW 2/40 2 14,90
PT4D507000 200 0-120 °C G1/2B G+VE+QINAIL+LW 2/40 2 13,90
come sopra/
300 G1/2B G+VE 2/20 2 16,50
like above
300 0-120 °C G1/2B G+VE 2/20 2 15,10
Legenda opzioni vedere pag.105/Options legend see pag.105

94
