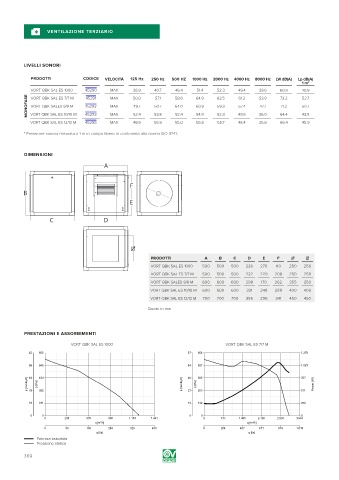

Page 360 - VORTICE - CATALOGO 2019

VENTILAZIONE TERZIARIO

LIVELLI SONORI

PRODOTTI CODICE VELOCITÀ 125 Hz 250 Hz 500 HZ 1000 Hz 2000 Hz 4000 Hz 8000 Hz LW dB(A) Lp dB(A)
1 m*
51.4
46.4
VORT QBK SAL ES 1000 45290 MAX 38.9 40.7 58.6 64.9 52.3 49.4 39.6 60.9 40.9
MONOFASE VORT QBK SAL ES 10/10 M 45292 MAX 49.7 50.7 64.0 60.9 59.3 49.5 36.0 64.4 50.7
53.8
45291
52.7
73.2
MAX
61.2
63.5
50.0
57.1
VORT QBK SAL ES 7/7 M
71.2
47.7
57.4
VORT QBK SALES 9/9 M
45293
MAX
52.3
54.9
52.4
53.8
43.9
52.4
VORT QBK SAL ES 12/12 M 45295 A MAX 49.9 56.9 55.0 55.8 55.7 48.4 35.8 66.4 45.9
* Pressione sonora misurata a 1 m in campo libero in conforimtà alla norma ISO 3741.
F
B
DIMENSIONI E
A
C D
F
B
E
C D
PRODOTTI A B C D E F Ø †
VORT QBK SAL ES 1000 500 500 500 226 270 110 250 250
VORT QBK SAL ES 7/7 M 500 500 500 232 229 208 250 250
VORT QBK SALES 9/9 M 600 600 600 298 170 262 355 350
VORT QBK SAL ES 10/10 M 600 600 600 331 248 289 400 400
VORT QBK SAL ES 12/12 M 700 700 700 395 296 341 450 450
Quote in mm

PRESTAZIONI E ASSORBIMENTI

VORT QBK SAL ES 1000 VORT QBK SAL ES 7/7 M
82 806 67 658 1.279

66 645 54 527 1.023

p [mmH O] 49 p [Pa] 484 p [mmH O] 40 p [Pa] 395 767 Power [W] Power [W]
511
322
27
33
263
16 161 13 132 256
0 0 0 0 0
0 288 576 865 1.153 1.441 0 733 1.465 2.198 2.930 3.663
q [m³/h] q [m³/h]
0 80 160 240 320 400 0 204 407 611 814 1.018
q [l/s] q [l/s]
Potenza assorbita
Pressione statica
360
