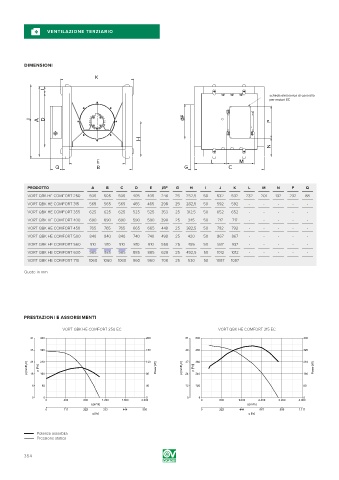

Page 354 - VORTICE - CATALOGO 2019

VENTILAZIONE TERZIARIO

DIMENSIONI
K

I

J A D F P

H
N

E L M
Q B G C

PRODOTTO A B C D E ØF G H I J K L M N P Q
VORT QBK HE COMFORT 250 505 505 505 405 405 248 25 252,5 50 532 532 232 201 132 232 88
VORT QBK HE COMFORT 315 565 565 565 465 465 298 25 282,5 50 592 592 - - - - -
VORT QBK HE COMFORT 355 625 625 625 525 525 353 25 312,5 50 652 652 - - - - -
VORT QBK HE COMFORT 400 690 690 690 590 590 398 25 345 50 717 717 - - - - -
VORT QBK HE COMFORT 450 765 765 765 665 665 448 25 382,5 50 792 792 - - - - -
VORT QBK HE COMFORT 500 840 840 840 740 740 498 25 420 50 867 867 - - - - -
VORT QBK HE COMFORT 560 910 910 910 810 810 558 25 455 50 937 937 - - - - -
VORT QBK HE COMFORT 630 985 985 985 885 885 628 25 492,5 50 1012 1012 - - - - -
VORT QBK HE COMFORT 710 1060 1060 1060 960 960 708 25 530 50 1087 1087 - - - - -
Quote in mm

PRESTAZIONI E ASSORBIMENTI

VORT QBK HE COMFORT 250 EC
VORT QBK HE COMFORT 315 EC
VORT QBK HE C OMFORT 250 EC . VORT QBK HE C OMFORT 315 EC .
41 400 200 61 600 400
33 320 160 49 480 320

p [mmH O] 24 p [Pa] 240 120 Power [W] Power [W] p [mmH O] 37 p [Pa] 360 240 Power [W] Power [W]

16
160
160
80
240
24
8 80 40 12 120 80
0 0 0 0 0 0
0 400 800 1.200 1.600 2.000 0 800 1.600 2.400 3.200 4.000
q [m³/h] q [m³/h]
0 111 222 333 444 556 0 222 444 667 889 1.111
q [l/s] q [l/s]
Potenza assorbita
Pressione statica
