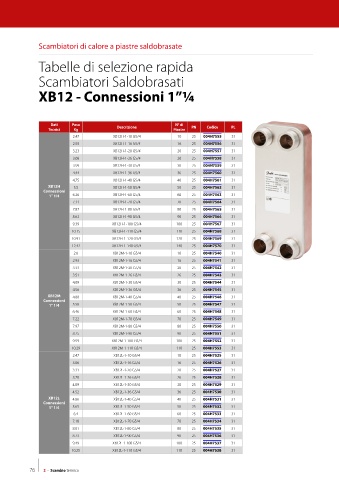

Page 78 - DANFOSS - CATALOGO GENERALE

Scambiatori di calore a piastre saldobrasate

Tabelle di selezione rapida

Scambiatori Saldobrasati

XB12 - Connessioni 1”¼

Dati Peso N° di
Tecnici Kg Descrizione Piastre PN Codice PL
2.47 XB12H-1-10 G5/4 10 25 004H7555 31
2.93 XB12H-1-16 G5/4 16 25 004H7556 31
3.23 XB12H-1-20 G5/4 20 25 004H7557 31
3.68 XB12H-1-26 G5/4 26 25 004H7558 31
3.99 XB12H-1-30 G5/4 30 25 004H7559 31
4.44 XB12H-1-36 G5/4 36 25 004H7560 31
4.75 XB12H-1-40 G5/4 40 25 004H7561 31
XB12H 5.5 XB12H-1-50 G5/4 50 25 004H7562 31
Connessioni
1" 1/4 6.26 XB12H-1-60 G5/4 60 25 004H7563 31
7.11 XB12H-1-70 G5/4 70 25 004H7564 31
7.87 XB12H-1-80 G5/4 80 25 004H7565 31
8.63 XB12H-1-90 G5/4 90 25 004H7566 31
9.39 XB12H-1-100 G5/4 100 25 004H7567 31
10.15 XB12H-1-110 G5/4 110 25 004H7568 31
10.91 XB12H-1-120 G5/4 120 25 004H7569 31
12.42 XB12H-1-140 G5/4 140 25 004H7570 31
2.6 XB12M-1-10 G5/4 10 25 004H7540 31
2.93 XB12M-1-16 G5/4 16 25 004H7541 31
3.33 XB12M-1-20 G5/4 20 25 004H7542 31
3.51 XB12M-1-26 G5/4 26 25 004H7543 31
4.09 XB12M-1-30 G5/4 30 25 004H7544 31
4.56 XB12M-1-36 G5/4 36 25 004H7545 31
XB12M 4.88 XB12M-1-40 G5/4 40 25 004H7546 31
Connessioni
1" 1/4 5.58 XB12M-1-50 G5/4 50 25 004H7547 31
6.46 XB12M-1-60 G5/4 60 25 004H7548 31
7.22 XB12M-1-70 G5/4 70 25 004H7549 31
7.97 XB12M-1-80 G5/4 80 25 004H7550 31
8.75 XB12M-1-90 G5/4 90 25 004H7551 31
9.59 XB12M-1-100 G5/4 100 25 004H7552 31
10.29 XB12M-1-110 G5/4 110 25 004H7553 31
2.47 XB12L-1-10 G5/4 10 25 004H7525 31
3.06 XB12L-1-16 G5/4 16 25 004H7526 31
3.31 XB12L-1-20 G5/4 20 25 004H7527 31
3.78 XB12L-1-26 G5/4 26 25 004H7528 31
4.09 XB12L-1-30 G5/4 30 25 004H7529 31
4.52 XB12L-1-36 G5/4 36 25 004H7530 31
XB12L 4.86 XB12L-1-40 G5/4 40 25 004H7531 31
Connessioni
1" 1/4 5.65 XB12L-1-50 G5/4 50 25 004H7532 31
6.4 XB12L-1-60 G5/4 60 25 004H7533 31
7.18 XB12L-1-70 G5/4 70 25 004H7534 31
8.01 XB12L-1-80 G5/4 80 25 004H7535 31
8.73 XB12L-1-90 G5/4 90 25 004H7536 31
9.49 XB12L-1-100 G5/4 100 25 004H7537 31
10.25 XB12L-1-110 G5/4 110 25 004H7538 31

76 2 - Scambio termico
