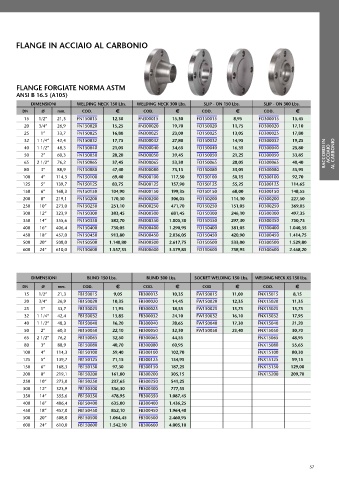

Page 57 - ATUSA - LISTINO 2023

FLANGE IN ACCIAIO AL CARBONIO

FLANGE FORGIATE NORMA ASTM
ANSI B 16.5 (A105)
DIMENSIONI WELDING NECK 150 Lbs. WELDING NECK 300 Lbs. SLIP - ON 150 Lbs. SLIP - ON 300 Lbs.
DN Ø mm. COD. € COD. € COD. € COD. €
15 1/2” 21,3 FN150015 12,30 FN300015 15,30 FO150015 8,95 FO300015 15,45
20 3/4” 26,9 FN150020 15,25 FN300020 19,70 FO150020 11,75 FO300020 17,10
25 1” 33,7 FN150025 16,80 FN300025 23,00 FO150025 13,05 FO300025 17,80
32 1 1/4” 42,4 FN150032 17,75 FN300032 27,80 FO150032 14,95 FO300032 19,25
40 1 1/2” 48,3 FN150040 21,05 FN300040 34,65 FO150040 16,35 FO300040 25,80
50 2” 60,3 FN150050 28,20 FN300050 39,45 FO150050 21,25 FO300050 33,85 RACCORDI IN ACCIAIO AL CARBONIO
65 2 1/2” 76,2 FN150065 37,45 FN300065 53,30 FO150065 28,05 FO300065 40,40
80 3” 88,9 FN150080 47,40 FN300080 73,15 FO150080 33,05 FO300080 55,95
100 4” 114,3 FN150100 69,40 FN300100 117,50 FO150100 50,15 FO300100 92,70
125 5” 139,7 FN150125 83,75 FN300125 157,90 FO150125 55,25 FO300125 114,65
150 6” 168,3 FN150150 104,90 FN300150 199,35 FO150150 68,00 FO300150 148,55
200 8” 219,1 FN150200 170,30 FN300200 306,05 FO150200 114,10 FO300200 227,50
250 10” 273,0 FN150250 251,10 FN300250 471,70 FO150250 151,05 FO300250 369,05
300 12” 323,9 FN150300 383,45 FN300300 681,45 FO150300 246,10 FO300300 497,35
350 14” 355,6 FN150350 582,70 FN300350 1.005,30 FO150350 297,30 FO300350 750,75
400 16” 406,4 FN150400 730,05 FN300400 1.290,95 FO150400 381,05 FO300400 1.040,35
450 18” 457,0 FN150450 913,80 FN300450 2.036,05 FO150450 420,90 FO300450 1.414,75
500 20” 508,0 FN150500 1.140,80 FN300500 2.617,75 FO150500 533,00 FO300500 1.529,80
600 24” 610,0 FN150600 1.557,35 FN300600 3.579,85 FO150600 758,95 FO300600 2.468,20

DIMENSIONI BLIND 150 Lbs. BLIND 300 Lbs. SOCKET WELDING 150 Lbs. WELDING NECK XS 150 Lbs.
DN Ø mm. COD. € COD. € COD € COD. €
15 1/2” 21,3 FB150015 9,05 FB300015 10,35 FW150015 11,00 FNX15015 8,15
20 3/4” 26,9 FB150020 10,35 FB300020 14,45 FW150020 12,35 FNX15020 11,35
25 1” 33,7 FB150025 11,95 FB300025 18,55 FW150025 13,75 FNX15025 13,75
32 1 1/4” 42,4 FB150032 13,85 FB300032 24,10 FW150032 16,10 FNX15032 17,95
40 1 1/2” 48,3 FB150040 16,20 FB300040 28,65 FW150040 17,30 FNX15040 21,20
50 2” 60,3 FB150050 22,10 FB300050 32,30 FW150050 23,40 FNX15050 30,70
65 2 1/2” 76,2 FB150065 32,50 FB300065 44,55 FNX15065 48,95
80 3” 88,9 FB150080 40,70 FB300080 60,95 FNX15080 55,65
100 4” 114,3 FB150100 59,40 FB300100 102,70 FNX15100 80,30
125 5” 139,7 FB150125 71,15 FB300125 134,95 FNX15125 99,15
150 6” 168,3 FB150150 97,30 FB300150 187,25 FNX15150 129,00
200 8” 219,1 FB150200 161,80 FB300200 305,15 FNX15200 209,70
250 10” 273,0 FB150250 237,65 FB300250 541,25
300 12” 323,9 FB150300 356,30 FB300300 777,55
350 14” 355,6 FB150350 478,95 FB300350 1.087,45
400 16” 406,4 FB150400 635,00 FB300400 1.436,25
450 18” 457,0 FB150450 852,10 FB300450 1.964,40
500 20” 508,0 FB150500 1.064,45 FB300500 2.460,95
600 24” 610,0 FB150600 1.542,10 FB300600 4.005,10

57
