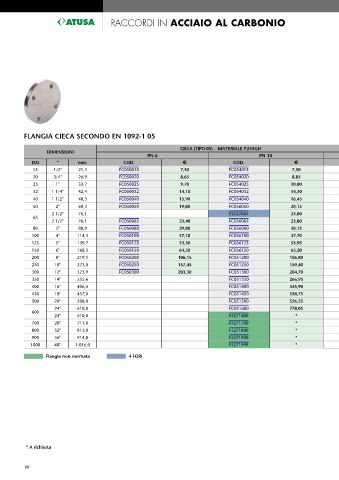

Page 60 - ATUSA - LISTINO 2023
P. 60
RACCORDI IN ACCIAIO AL CARBONIO
FLANGIA CIECA SECONDO EN 1092-1 05
CIECA (TIPO 05) - MATERIALE P245GH CIECA (TIPO 05) - MATERIALE P245GH
DIMENSIONI
PN 6 PN 10 PN 16 PN 25 PN 40
DN “ mm. COD. € COD. € COD. € COD. € COD. €
15 1/2" 21,3 FC050015 7,30 FC054015 7,50 FC054015 7,50 FC054015 7,50 FC054015 7,50
20 3/4" 26,9 FC050020 8,65 FC054020 8,85 FC054020 8,85 FC054020 8,85 FC054020 8,85
25 1" 33,7 FC050025 9,70 FC054025 10,00 FC054025 10,00 FC054025 10,00 FC054025 10,00
32 1 1/4" 42,4 FC050032 14,10 FC054032 14,30 FC054032 14,30 FC054032 14,30 FC054032 14,30
40 1 1/2" 48,3 FC050040 15,90 FC054040 16,45 FC054040 16,45 FC054040 16,45 FC054040 16,45
50 2" 60,3 FC050050 19,80 FC056050 20,15 FC056050 20,15 FC054050 32,35 FC054050 32,35
2 1/2" 76,1 F2527065 23,80 F2527065 23,80
65
2 1/2" 76,1 FC050065 23,40 FC056065 23,80 FC056065 23,80 FC054065 43,35 FC054065 43,35
80 3" 88,9 FC050080 29,80 FC056080 30,15 FC056080 30,15 FC054080 59,65 FC054080 59,65
100 4" 114,3 FC050100 37,10 FC056100 37,70 FC056100 37,70 FC054100 76,40 FC054100 76,40
125 5" 139,7 FC050125 53,30 FC056125 53,95 FC056125 53,95 FC054125 109,60 FC054125 109,60
150 6" 168,3 FC050150 64,50 FC056150 65,20 FC056150 65,20 FC054150 146,75 FC054150 146,75
200 8" 219,1 FC050200 106,15 FC051200 106,80 FC056200 107,55 FC052200 239,50 FC054200 295,95
250 10" 273,0 FC050250 157,45 FC051250 159,40 FC056250 159,45 FC052250 359,90 FC054250 482,80
300 12" 323,9 FC050300 203,30 FC051300 204,70 FC056300 221,95 FC052300 496,85 FC054300 689,85
350 14" 355,6 FC051350 266,95 FC056350 329,85 FC052350 730,20 FC054350 980,30
400 16" 406,4 FC051400 345,90 FC056400 444,70 FC052400 981,40 FC054400 1.423,95
450 18" 457,0 FC051450 538,75 FC056450 732,30
500 20" 508,0 FC051500 526,55 FC056500 931,25 FC052500 1.510,05 FC054500 1.948,75
24" 610,0 FC051600 778,05 FC056600 1.484,25
600
24" 610,0 F5271600 * F2527600 *
700 28" 711,0 F5271700 * F2527700 *
800 32" 813,0 F5271800 * F2527800 *
900 36" 914,0 F5271900 * F2527900 *
1000 40" 1.016,0 F5271999 * F2527999 *
Flangia non normata 4 FORI
* A richiesta
60
