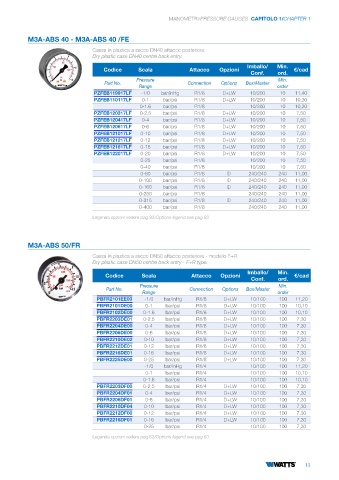

Page 15 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-ABS 40 - M3A-ABS 40 /FE
Cassa in plastica a secco DN40 attacco posteriore.
Dry plastic case DN40 centre back entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PZFEB119917LF -1/0 bar/inHg R1/8 D+LW 10/200 10 11,40
PZFEB110117LF 0-1 bar/psi R1/8 D+LW 10/200 10 10,30
0-1.6 bar/psi R1/8 10/200 10 10,20
PZFEB120317LF 0-2.5 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB120417LF 0-4 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB120617LF 0-6 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB121017LF 0-10 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB121217LF 0-12 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB121617LF 0-16 bar/psi R1/8 D+LW 10/200 10 7,50
PZFEB122017LF 0-20 bar/psi R1/8 D+LW 10/200 10 7,50
0-25 bar/psi R1/8 10/200 10 7,50
0-40 bar/psi R1/8 10/200 10 7,50
0-60 bar/psi R1/8 D 240/240 240 11,00
0-100 bar/psi R1/8 D 240/240 240 11,00
0-160 bar/psi R1/8 D 240/240 240 11,00
0-250 bar/psi R1/8 240/240 240 11,00
0-315 bar/psi R1/8 D 240/240 240 11,00
0-400 bar/psi R1/8 240/240 240 11,00
Legenda opzioni vedere pag.83/Options legend see pag.83

M3A-ABS 50/FR
Cassa in plastica a secco DN50 attacco posteriore - modello F+R.
Dry plastic case DN50 centre back entry - F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PBFR2101EE00 -1/0 bar/inHg R1/8 D+LW 10/100 100 11,20
PBFR2101DE00 0-1 bar/psi R1/8 D+LW 10/100 100 10,10
PBFR2102DE00 0-1.6 bar/psi R1/8 D+LW 10/100 100 10,10
PBFR2203DE01 0-2.5 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2204DE00 0-4 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2206DE00 0-6 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2210DE02 0-10 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2212DE01 0-12 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2216DE01 0-16 bar/psi R1/8 D+LW 10/100 100 7,30
PBFR2225DE00 0-25 bar/psi R1/8 D+LW 10/100 100 7,30
-1/0 bar/inHg R1/4 10/100 100 11,20
0-1 bar/psi R1/4 10/100 100 10,10
0-1.6 bar/psi R1/4 10/100 100 10,10
PBFR2203DF00 0-2.5 bar/psi R1/4 D+LW 10/100 100 7,30
PBFR2204DF01 0-4 bar/psi R1/4 D+LW 10/100 100 7,30
PBFR2206DF01 0-6 bar/psi R1/4 D+LW 10/100 100 7,30
PBFR2210DF04 0-10 bar/psi R1/4 D+LW 10/100 100 7,30
PBFR2212DF00 0-12 bar/psi R1/4 D+LW 10/100 100 7,30
PBFR2216DF01 0-16 bar/psi R1/4 D+LW 10/100 100 7,30
0-25 bar/psi R1/4 10/100 100 7,30
Legenda opzioni vedere pag.83/Options legend see pag.83
