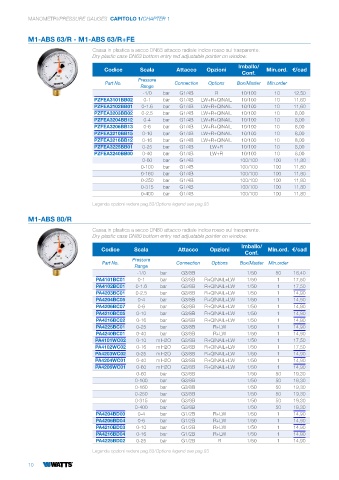

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M1-ABS 63/R - M1-ABS 63/R+FE
Cassa in plastica a secco DN63 attacco radiale indice rosso sul trasparente.
Dry plastic case DN63 bottom entry red adjustable pointer on window.
Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
Conf.
Pressure
Part No. Connection Options Box/Master Min.order
Range
-1/0 bar G1/4B R 10/100 10 12,50
PZFEA3101BB02 0-1 bar G1/4B LW+R+QINAIL 10/100 10 11,60
PZFEA3102BB01 0-1.6 bar G1/4B LW+R+QINAIL 10/100 10 11,60
PZFEA3203BB02 0-2.5 bar G1/4B LW+R+QINAIL 10/100 10 8,00
PZFEA3204BB12 0-4 bar G1/4B LW+R+QINAIL 10/100 10 8,00
PZFEA3206BB13 0-6 bar G1/4B LW+R+QINAIL 10/100 10 8,00
PZFEA3210BB15 0-10 bar G1/4B LW+R+QINAIL 10/100 10 8,00
PZFEA3216BB12 0-16 bar G1/4B LW+R+QINAIL 10/100 10 8,00
PZFEA3225BB01 0-25 bar G1/4B LW+R 10/100 10 8,00
PZFEA3240BB00 0-40 bar G1/4B LW+R 10/100 10 8,00
0-60 bar G1/4B 100/100 100 11,80
0-100 bar G1/4B 100/100 100 11,80
0-160 bar G1/4B 100/100 100 11,80
0-250 bar G1/4B 100/100 100 11,80
0-315 bar G1/4B 100/100 100 11,80
0-400 bar G1/4B 100/100 100 11,80
Legenda opzioni vedere pag.83/Options legend see pag.83

M1-ABS 80/R

Cassa in plastica a secco DN80 attacco radiale indice rosso sul trasparente.
Dry plastic case DN80 bottom entry red adjustable pointer on window.
Imballo/
Codice Scala Attacco Opzioni Min.ord. €/cad
Conf.
Pressure
Part No. Connection Options Box/Master Min.order
Range
-1/0 bar G3/8B 1/50 50 18,40
PA4101BC01 0-1 bar G3/8B R+QINAIL+LW 1/50 1 17,50
PA4102BC01 0-1.6 bar G3/8B R+QINAIL+LW 1/50 1 17,50
PA4203BC01 0-2.5 bar G3/8B R+QINAIL+LW 1/50 1 14,90
PA4204BC05 0-4 bar G3/8B R+QINAIL+LW 1/50 1 14,90
PA4206BC07 0-6 bar G3/8B R+QINAIL+LW 1/50 1 14,90
PA4210BC05 0-10 bar G3/8B R+QINAIL+LW 1/50 1 14,90
PA4216BC02 0-16 bar G3/8B R+QINAIL+LW 1/50 1 14,90
PA4225BC01 0-25 bar G3/8B R+LW 1/50 1 14,90
PA4240BC01 0-40 bar G3/8B R+LW 1/50 1 14,90
PA4101WC02 0-10 m H2O G3/8B R+QINAIL+LW 1/50 1 17,50
PA4102WC02 0-16 m H2O G3/8B R+QINAIL+LW 1/50 1 17,50
PA4203WC02 0-25 m H2O G3/8B R+QINAIL+LW 1/50 1 14,90
PA4204WC01 0-40 m H2O G3/8B R+QINAIL+LW 1/50 1 14,90
PA4206WC01 0-60 m H2O G3/8B R+QINAIL+LW 1/50 1 14,90
0-60 bar G3/8B 1/50 50 19,30
0-100 bar G3/8B 1/50 50 19,30
0-160 bar G3/8B 1/50 50 19,30
0-250 bar G3/8B 1/50 50 19,30
0-315 bar G3/8B 1/50 50 19,30
0-400 bar G3/8B 1/50 50 19,30
PA4204BD00 0-4 bar G1/2B R+LW 1/50 1 14,90
PA4206BD04 0-6 bar G1/2B R+LW 1/50 1 14,90
PA4210BD03 0-10 bar G1/2B R+LW 1/50 1 14,90
PA4216BD04 0-16 bar G1/2B R+LW 1/50 1 14,90
PA4225BD02 0-25 bar G1/2B R 1/50 1 14,90
Legenda opzioni vedere pag.83/Options legend see pag.83
