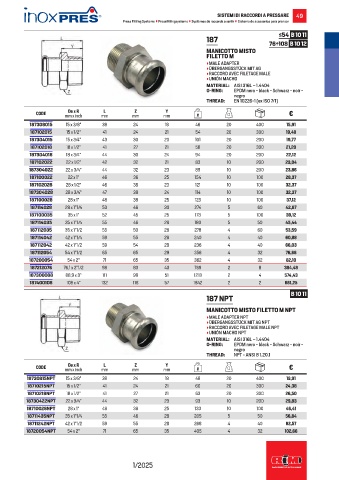

SISTEMI DI RACCORDI A PRESSARE 49
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

≤54 B 10 11
187
76÷108 B 10 12
MANICOTTO MISTO
FILETTO M
• MALE ADAPTER
• ÜBERGANGSSTÜCK MIT AG
• RACCORD AVEC FILETAGE MALE
• UNIÓN MACHO
MATERIAL: AISI 316L – 1.4404
O-RING: EPDM nero - black - Schwarz - noir -
negro
THREAD: EN 10226-1 (ex ISO 7/1)
L
De x R
Y
Z
CODE mm x inch mm mm mm g €
187308015 15 x 3/8” 38 24 18 46 20 400 15,91
187102015 15 x 1/2” 41 24 21 54 20 300 19,48
187304015 15 x 3/4” 43 30 23 101 20 200 19,77
187102018 18 x 1/2” 41 27 21 58 20 300 21,20
187304018 18 x 3/4” 44 30 24 94 20 200 22,12
187102022 22 x 1/2” 42 32 21 83 10 200 23,04
187304022 22 x 3/4” 44 32 23 89 10 200 23,86
187100022 22 x 1” 46 36 25 154 10 100 28,37
187102028 28 x 1/2” 46 38 23 121 10 100 32,37
187304028 28 x 3/4” 47 38 24 114 10 100 32,37
187100028 28 x 1” 48 38 25 123 10 100 37,12
187114028 28 x 1”1/4 53 46 30 274 5 60 42,87
187100035 35 x 1” 52 45 25 173 5 100 39,12
187114035 35 x 1”1/4 55 46 28 180 5 50 45,44
187112035 35 x 1”1/2 55 50 28 278 4 60 53,59
187114042 42 x 1”1/4 59 55 28 240 4 40 60,88
187112042 42 x 1”1/2 59 54 28 236 4 40 66,03
187112054 54 x 1”1/2 65 65 29 356 4 32 76,66
187200054 54 x 2” 71 65 35 362 4 32 82,10
187212076 76,1 x 2”1/2 98 83 43 769 2 8 384,48
187300088 88,9 x 3” 111 98 51 1218 2 4 574,43
187400108 108 x 4” 132 118 57 1842 2 2 661,25

B 10 11
187 NPT
MANICOTTO MISTO FILETTO M NPT
• MALE ADAPTER NPT
• ÜBERGANGSSTÜCK MIT AG NPT
• RACCORD AVEC FILETAGE MALE NPT
• UNIÓN MACHO NPT
MATERIAL: AISI 316L – 1.4404
O-RING: EPDM nero - black - Schwarz - noir -
negro
THREAD: NPT - ANSI B 1.20.1
De x R
L
Y
Z
CODE mm x inch mm mm mm g €
18730815NPT 15 x 3/8” 38 24 18 48 20 400 19,91
18710215NPT 15 x 1/2” 41 24 21 60 20 300 24,38
18710218NPT 18 x 1/2” 41 27 21 63 20 300 26,50
18730422NPT 22 x 3/4” 44 32 23 93 10 200 29,83
18710028NPT 28 x 1” 48 38 25 133 10 100 46,41
18711435NPT 35 x 1”1/4 55 46 28 205 5 50 56,84
18711242NPT 42 x 1”1/2 59 55 28 268 4 40 82,57
18720054NPT 54 x 2” 71 65 35 405 4 32 102,66
