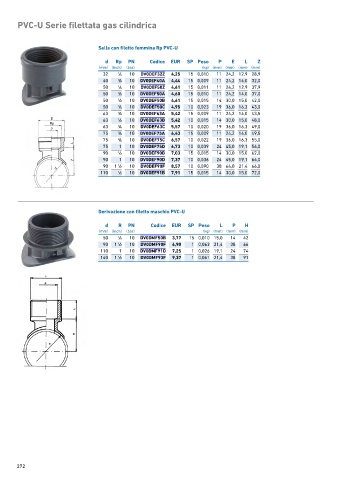

PVC-U Serie filettata gas cilindrica

Sella con filetto femmina Rp PVC-U

d Rp PN Codice EUR SP Peso P E L Z
(mm) (inch) (bar) (kg) (mm) (mm) (mm) (mm)
32 1 ∕4 10 DV0DEF32Z 4,25 15 0,010 11 24,2 12,9 28,9
40 3 ∕8 10 DV0DEF40A 4,44 15 0,009 11 24,2 14,0 32,0
50 1 ∕4 10 DV0DEF50Z 4,61 15 0,011 11 24,2 12,9 37,9
50 3 ∕8 10 DV0DEF50A 4,60 15 0,010 11 24,2 14,0 37,0
50 1 ∕2 10 DV0DEF50B 4,61 15 0,015 14 30,0 15,0 42,0
50 3 ∕4 10 DV0DEF50C 4,95 10 0,023 19 36,0 16,3 43,0
63 3 ∕8 10 DV0DEF63A 5,42 15 0,009 11 24,2 14,0 43,5
63 1 ∕2 10 DV0DEF63B 5,42 10 0,015 14 30,0 15,0 48,0
63 3 ∕4 10 DV0DEF63C 5,57 10 0,020 19 36,0 16,3 49,0
75 3 ∕8 10 DV0DEF75A 6,43 15 0,009 11 24,2 14,0 49,5
75 3 ∕4 10 DV0DEF75C 6,57 10 0,022 19 36,0 16,3 55,0
75 1 10 DV0DEF75D 6,73 10 0,039 24 45,0 19,1 56,0
90 1 ∕2 10 DV0DEF90B 7,03 15 0,015 14 30,0 15,0 62,0
90 1 10 DV0DEF90D 7,37 10 0,036 24 45,0 19,1 64,0
1
90 1 ∕2 10 DV0DEF90F 8,57 10 0,090 38 64,0 21,4 66,0
110 1 ∕2 10 DV0DEF91B 7,91 15 0,015 14 30,0 15,0 72,0

Derivazione con filetto maschio PVC-U

d R PN Codice EUR SP Peso L P H
(mm) (inch) (bar) (kg) (mm) (mm) (mm)
50 1 ∕2 10 DV0DMF50B 3,77 15 0,010 15,0 14 42
90 1 ∕2 10 DV0DMF90F 6,90 1 0,063 21,4 38 66
1
110 1 10 DV0DMF91D 7,25 1 0,026 19,1 24 74
140 1 ∕2 10 DV0DMF93F 9,37 1 0,061 21,4 38 91
1
