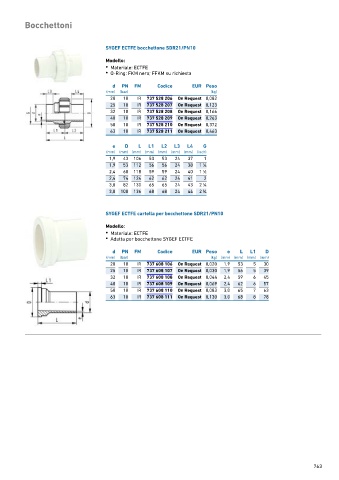

Bocchettoni

SYGEF ECTFE bocchettone SDR21/PN10

Modello:
• Materiale: ECTFE
• O-Ring: FKM nero; FFKM su richiesta

d PN FM Codice EUR Peso
(mm) (bar) (kg)
20 10 IR 737 528 206 On Request 0,082
25 10 IR 737 528 207 On Request 0,123
32 10 IR 737 528 208 On Request 0,166
40 10 IR 737 528 209 On Request 0,263
50 10 IR 737 528 210 On Request 0,372
63 10 IR 737 528 211 On Request 0,463

e D L L1 L2 L3 L4 G
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (inch)
1,9 43 106 53 53 24 37 1
1,9 53 112 56 56 24 38 1 ∕4
1
2,4 60 118 59 59 24 40 1 ∕2
1
2,4 74 124 62 62 24 41 2
3,0 82 130 65 65 24 43 2 ∕4
1
3,0 100 136 68 68 24 44 2 ∕4
3
SYGEF ECTFE cartella per bocchettone SDR21/PN10

Modello:
• Materiale: ECTFE
• Adatta per bocchettone SYGEF ECTFE

d PN FM Codice EUR Peso e L L1 D
(mm) (bar) (kg) (mm) (mm) (mm) (mm)
20 10 IR 737 608 106 On Request 0,020 1,9 53 5 30
25 10 IR 737 608 107 On Request 0,030 1,9 56 5 39
32 10 IR 737 608 108 On Request 0,044 2,4 59 6 45
40 10 IR 737 608 109 On Request 0,069 2,4 62 6 57
50 10 IR 737 608 110 On Request 0,083 3,0 65 7 63
63 10 IR 737 608 111 On Request 0,130 3,0 68 8 78

763
