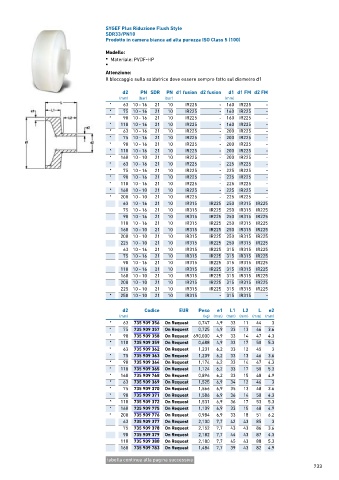

Page 733 - GEORGFISCHER - LISTINO 876 - FIDRA

SYGEF Plus Riduzione Flush Style
SDR33/PN10
Prodotto in camera bianca ad alta purezza ISO Class 5 (100)

Modello:
• Materiale: PVDF-HP
•

Attenzione:
Il bloccaggio sulla saldatrice deve essere sempre fatto sul diametro d1

d2 PN SDR PN d1 fusion d2 fusion d1 d1 FM d2 FM
(mm) (bar) (bar) (mm)
* 63 10 ‐ 16 21 10 IR225 - 160 IR225 -
* 75 10 ‐ 16 21 10 IR225 - 160 IR225 -
* 90 10 ‐ 16 21 10 IR225 - 160 IR225 -
* 110 10 ‐ 16 21 10 IR225 - 160 IR225 -
* 63 10 ‐ 16 21 10 IR225 - 200 IR225 -
* 75 10 ‐ 16 21 10 IR225 - 200 IR225 -
* 90 10 ‐ 16 21 10 IR225 - 200 IR225 -
* 110 10 ‐ 16 21 10 IR225 - 200 IR225 -
* 160 10 ‐ 10 21 10 IR225 - 200 IR225 -
* 63 10 ‐ 16 21 10 IR225 - 225 IR225 -
* 75 10 ‐ 16 21 10 IR225 - 225 IR225 -
* 90 10 ‐ 16 21 10 IR225 - 225 IR225 -
* 110 10 ‐ 16 21 10 IR225 - 225 IR225 -
* 160 10 ‐ 10 21 10 IR225 - 225 IR225 -
* 200 10 ‐ 10 21 10 IR225 - 225 IR225 -
63 10 ‐ 16 21 10 IR315 IR225 250 IR315 IR225
75 10 ‐ 16 21 10 IR315 IR225 250 IR315 IR225
90 10 ‐ 16 21 10 IR315 IR225 250 IR315 IR225
110 10 ‐ 16 21 10 IR315 IR225 250 IR315 IR225
160 10 ‐ 10 21 10 IR315 IR225 250 IR315 IR225
200 10 ‐ 10 21 10 IR315 IR225 250 IR315 IR225
225 10 ‐ 10 21 10 IR315 IR225 250 IR315 IR225
63 10 ‐ 16 21 10 IR315 IR225 315 IR315 IR225
75 10 ‐ 16 21 10 IR315 IR225 315 IR315 IR225
90 10 ‐ 16 21 10 IR315 IR225 315 IR315 IR225
110 10 ‐ 16 21 10 IR315 IR225 315 IR315 IR225
160 10 ‐ 10 21 10 IR315 IR225 315 IR315 IR225
200 10 ‐ 10 21 10 IR315 IR225 315 IR315 IR225
225 10 ‐ 10 21 10 IR315 IR225 315 IR315 IR225
* 250 10 ‐ 10 21 10 IR315 - 315 IR315 -

d2 Codice EUR Peso e1 L1 L2 L e2
(mm) (kg) (mm) (mm) (mm) (mm) (mm)
* 63 735 909 356 On Request 0,747 4,9 33 11 44 3
* 75 735 909 357 On Request 0,725 4,9 33 13 46 3.6
* 90 735 909 358 On Request 690,000 4,9 33 14 47 4.3
* 110 735 909 359 On Request 0,688 4,9 33 17 50 5.3
* 63 735 909 362 On Request 1,231 6,2 33 12 45 3
* 75 735 909 363 On Request 1,209 6,2 33 13 46 3.6
* 90 735 909 364 On Request 1,174 6,2 33 14 47 4.3
* 110 735 909 365 On Request 1,124 6,2 33 17 50 5.3
* 160 735 909 768 On Request 0,896 6,2 33 15 48 4.9
* 63 735 909 369 On Request 1,525 6,9 34 12 46 3
* 75 735 909 370 On Request 1,566 6,9 35 13 48 3.6
* 90 735 909 371 On Request 1,586 6,9 36 14 50 4.3
* 110 735 909 372 On Request 1,531 6,9 36 17 53 5.3
* 160 735 909 775 On Request 1,109 6,9 33 15 48 4.9
* 200 735 909 776 On Request 0,984 6,9 33 18 51 6.2
63 735 909 377 On Request 2,100 7,7 42 43 85 3
75 735 909 378 On Request 2,152 7,7 43 43 86 3.6
90 735 909 379 On Request 2,182 7,7 44 43 87 4.3
110 735 909 380 On Request 2,180 7,7 45 43 88 5.3
160 735 909 783 On Request 1,484 7,7 39 43 82 4.9
tabella continua alla pagina successiva
