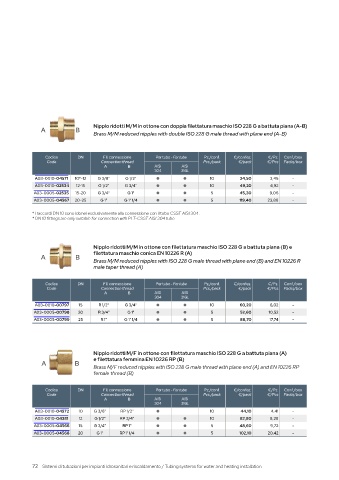

Page 72 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Nipplo ridotti M/M in ottone con doppia filettatura maschio ISO 228 G a battuta piana (A-B)
A B
Brass M/M reduced nipples with double ISO 228 G male thread with plane end (A-B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-04571 10*-12 G 3/8" G 1/2" 10 34,50 3,45 -
A03-0010-02534 12-15 G 1/2" G 3/4" 10 49,20 4,92 -
A03-0005-02535 15-20 G 3/4" G 1" 5 45,30 9,06 -
A03-0005-04567 20-25 G 1" G 1" 1/4 5 119,40 23,88 -

* i raccordi DN 10 sono idonei esclusivamente alla connessione con il tubo CSST AISI 304.
* DN 10 fittings are only suitable for connection with PLT-CSST AISI 304 tube.

Nipplo ridotti M/M in ottone con filettatura maschio ISO 228 G a battuta piana (B) e
filettatura maschio conica EN 10226 R (A)
A B
Brass M/M reduced nipples with ISO 228 G male thread with plane end (B) and EN 10226 R
male taper thread (A)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-00797 15 R 1/2" G 3/4" 10 60,20 6,02 -
A03-0005-00798 20 R 3/4" G 1" 5 52,60 10,52 -
A03-0005-00799 25 R 1" G 1" 1/4 5 88,70 17,74 -

Nipplo ridotti M/F in ottone con filettatura maschio ISO 228 G a battuta piana (A)
e filettatura femmina EN 10226 RP (B)
A B
Brass M/F reduced nipples with ISO 228 G male thread with plane end (A) and EN 10226 RP
female thread (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-04572 10 G 3/8" RP 1/2" 10 44,10 4,41 -
A03-0010-04381 12 G 1/2" RP 3/4" 10 82,80 8,28 -
A03-0005-04566 15 G 3/4" RP 1" 5 48,60 9,72 -
A03-0005-04568 20 G 1" RP 1" 1/4 5 102,10 20,42 -

72 Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation
